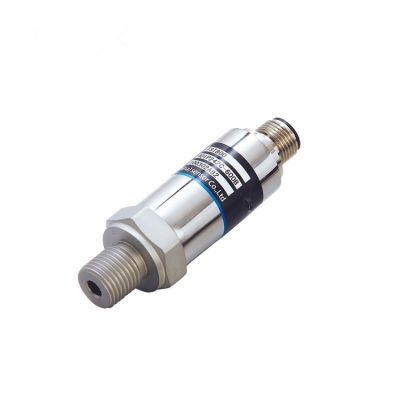

Testermeter-FST800-401 Pressure Transmitter for Construction Machinery Industry
【Product Overview】
| FST800-401 pressure transmitter for engineering machinery industry adopts advanced glass micro-melting technology, sintered at 500℃, and the elastomer and pressure interface adopt an integrated structure design, no "O" ring, no weld, no leakage risk, and strong corrosion resistance. |
【Product Overview】
| ● Advanced production technology, overall structure design of elastomer, no leakage risk ● With built-in pulse buffer ● Advanced anti-interference and anti-surge circuit protection ● Excellent impact resistance, overload resistance, vibration resistance, and corrosion resistance ● Advanced temperature digital compensation function, wide operating temperature range ● High precision, high frequency response, and good long-term stability |
【Application Range】
| ● Industrial process measurement and control ● Heavy industry equipment matching ● Industrial machinery manufacturing measurement and control |
【Technical parameters】
Range 0~6...600Bar(Gauge) Output signal 4~20mA，0.5~4.5VDC，0~5VDC，0~10VDC Precision ±0.5%FS，±1%FS Signal Line Specifications 2Wire（4~20mA），3Wire（0.5~4.5VDC，0~5VDC，0~10VDC） Supply voltage 9~30VDC（4~20mA，0~5VDC），5VDC（0.5~4.5VDC），15~30VDC（0~10VDC） Medium temperature -40℃~+85℃ Storage temperature -40℃~+85℃ Temperature compensation -10℃~+70℃ Long-term stability ≤±0.1%FS/year Allow overload 300%FS Breaking pressure 500%FS Shock (11mS) 100g Zero temperature drift ±0.02%FS/℃ Full scale temperature drift ±0.02%FS/℃ Pressure port M20*1.5, G1/4 (can be customized) Electrical connections M12 connector, direct outlet, large Hessmann, Pack connector (customizable) Degree of protection IP65 Material 17-4PH (probe) + 304 stainless steel electronic warehouse
