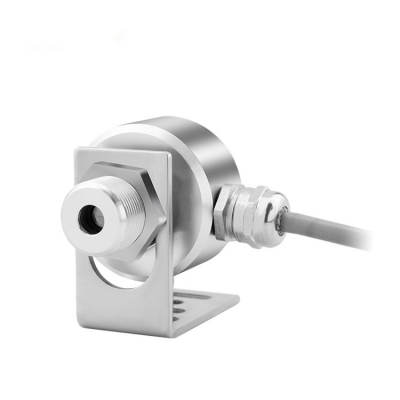

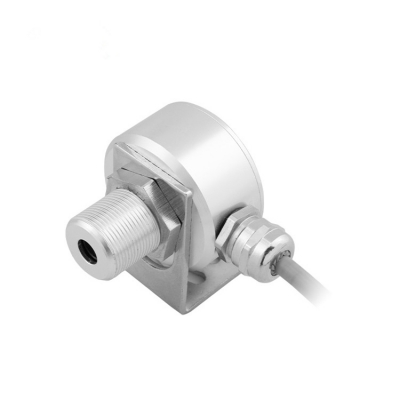

Testermeter-FST600-400C Dot Matrix Infrared Temperature Sensor
【Product Overview】
| Infrared thermal imager is a temperature measuring device that converts the temperature distribution of the measured object into an image by measuring the infrared radiation of the measured object. It is widely used in power, chemical, metallurgy, rail transportation, forest fire prevention, body temperature detection and other fields. FST600-400C infrared thermometer can be used to measure the temperature of high or low temperature, high voltage and high-speed mechanical temperature, and the measurer does not have to be close to these specific environments. At the same time, the product has fast response speed and high sensitivity. Since it is a non-contact measurement, the measurement process will not change the temperature of the measured object, so the measurement result is true and reliable. FST600-400C dot matrix infrared temperature sensor adopts 32*24 dot matrix method to monitor the temperature of the object with different field of view. The product is widely used in power equipment, metallurgy, construction industry, chemical products and chemical industry and its automation control and detection system. |
【Product Features】
| ● Infrared measurement, no need to contact the object being measured; ● Real-time, telemetry, intuitive and other temperature measurement advantages; ● Can meet various working conditions; ● Sturdy and durable stainless steel shell; ● Safe to use, long service life; ● Simple installation, multiple temperature measurement ranges are optional. |
【Application Scope】
| ● Power equipment; ● Forest fire prevention; ● Chemical industry; ● Modern medical field; ● Mechanical processing control field. |
【Technical Parameters】
Power supply range 5~30V DC Temperature range (°C) 0~100℃ Output signal RS485 Signal Line Specifications 4Wire Supply voltage 5~30VDC Temperature measurement accuracy ±2°C (middle pixel area 0-50°C) Spectral range 8-14um Ambient temperature -40～+85°C Storage temperature -40～+85°C Detector resolution 32*24 Field of view BAA:110°*75°，BAB:55°*35° Degree of protection IP65 Material Aluminum alloy
