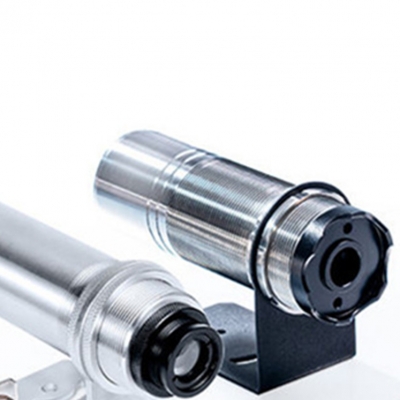

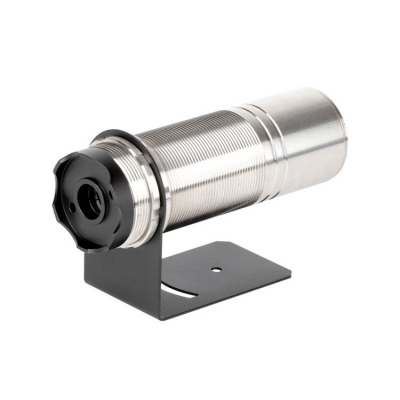

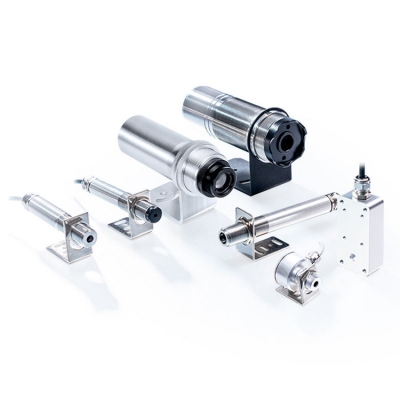

Testermeter-FST600-402 High Temperature Infrared Temperature Sensor
【Product Description】
| FST600-402 infrared Temperature Sensor measures the infrared radiation energy through the infrared detector (thermal detector and photoelectric detector) and converts it into an electrical signal, and then converts it into temperature according to the basic law of radiation and displays the temperature signal through the display instrument. It mainly It is composed of optical system, photodetector, signal amplifier and signal processing. Infrared thermometers can be used to measure the temperature in areas with high or low temperature, high voltage and high-speed machinery, and the measurer does not need to be close to these specific environments, and the product has fast response and high sensitivity. Due to the non- contact measurement, the measurement process will not change the temperature of the measured object, so the measurement results are true and reliable. |
【Technical Parameters】
Temperature range -50~1800℃(-58~3272°F) Temperature accuracy ± 2% or ± 2 ℃ Signal output 4-20mA Supply voltage 24VDC 50mA Max Ambient temperature 0 ~ 50 ℃ Storage temperature -20~50℃ Repeatability ±1% or ±1℃ Emissivity 0.95 Response time 500ms Response wavelength 8-14um Relative humidity 10-95% RH Shell Aluminum+Stainless steel Electrical connection M12 Connector Laser Powered 9V Battery (use before fixed installation) IP grade IP65 Certification standards CE certificate ; Compliance with EU anti-electromagnetic
interference standards
【Product size and wiring method】
【Scope of application】
| ♦ Physical, electrical, electronic and other measurement areas ♦ Steel, glass and plastic industry ♦ Temperature monitoring in process and production field ♦ Metallurgy, petrochemicals, electric power, light industry, textile industry, food industry, Defense and scientific research |
