Testermeter-FST600-400B Point Matrix Infrared Temperature Measurement Sensor
【Product Description】
| FST600-400B infrared temperature sensor measures infrared radiation energy through infrared detectors (thermal detectors and photoelectric detectors) and converts it into electrical signals, and then converts it into temperature according to the basic law of radiation. It is mainly composed of optical system, photoelectric detection device, signal amplifier, and signal processing. |
【Features】
◇No need to touch the target under test ◇No need to touch the target to be tested; ◇ It is convenient to measure targets that are difficult to approach or move; ◇ Fast response and high precision; ◇ It can meet the requirements of various working conditions. |
【Technical Parameters】
Measuring range -20~300℃ Accuracy Measurement value of ± 1%± 3% Signal output RS485 Duplicate accuracy The measuring value ± 1%or ± 1 ℃ the high value Power supply voltage 5~30VDC Pixel 16x4 pixel infrared array Vision 60 °×16 ° (standard), 40 °×10 °,120 °×25 ° Response time 500 ms Response wavelength 8-14um Ambient temperature -20~80℃ Storage temperature -40~85℃ Relative humidity 10 ~ 95%(not exposed) Shell -40~85℃ Size 119mm x 18.7mm (length*diameter) Electrical connections Go out directly Protection level IP65
【Scope of application】
◇ Power equipment. ◇ Modern medical field. ◇ Food industry. ◇ Chemical industry. ◇ Construction industry. ◇ The field of machining control. |

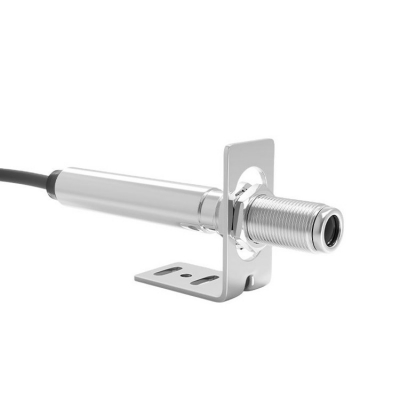

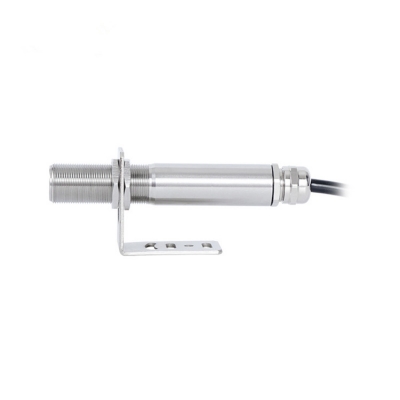

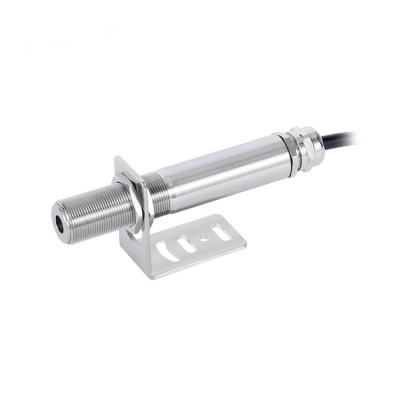

【Detail Pictures】
