Testermeter-FST600-408 Anti-Microwave Infrared Temperature Sensor
【Product Description】

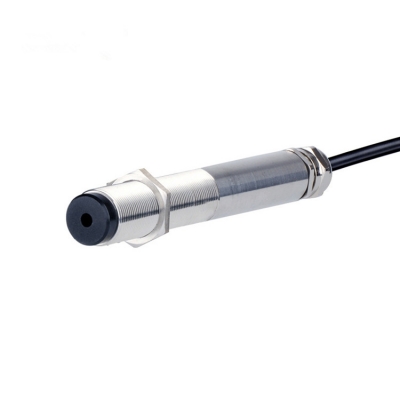

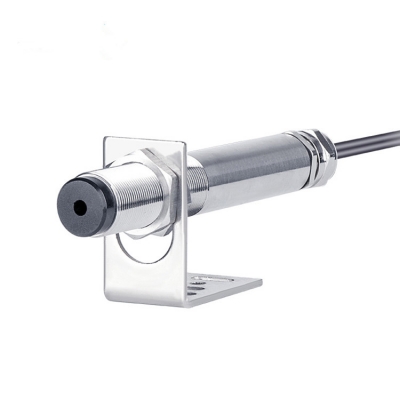

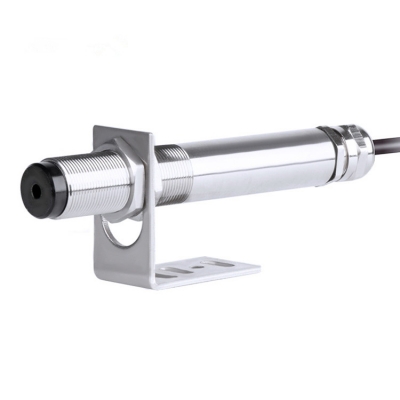

| FST600-408 infrared temperature sensor is an integrated infrared temperature sensor. The sensor, optical system and electronic circuit are integrated in the stainless steel shell; it is easy to install, and the standard thread on the stainless steel shell can be quickly connected to the installation part; Accessories (such as purgers, mounting brackets, three-dimensional adjustable mounting brackets, purge protective sleeves, etc.) to meet the requirements of various working conditions. |
【Technical Parameters】
output signal(0~100℃) (0~300℃) (0~500℃) Can be customized (4~20) mA, RS485 can be customized 2Wire、4Wire Spectral range 8-14um Supply voltage 10-30V DC、5-30V DC(RS485) ±2% of the measured value or ±2.5℃, whichever is greater Spectral range 8-14um Response time 100ms（95%） ambient temperature (0~+60)°C Storage temperature (-40~+85)°C Response time 300ms（95%） Protection level IP65 Material 304 D:S 20:1
【Features】
| ● Protection class: IP65 ● Ambient temperature: 0 ~ 60°C ● Storage temperature: -20 ~ 80°C ● Relative humidity: 10 – 95% (non-condensing) ● Material: stainless steel ● Size: M18×1, length 106*18mm ● Cable length: 1.5 m (standard) other lengths can be customized |
【Scope of application】
Power distribution cabinets, electricity, tobacco, heating furnaces, food, rubber, paper, plastics, packaging, printing and dyeing textiles, electrical, composite materials, equipment supporting, metallurgy, petrochemical systems, various kilns, heating furnaces, railways, and packaging machinery temperature monitoring, etc.
