Testermeter-FST600-400A Online Infrared Temperature Sensor
【Product Description】
FST600-400A Infrared Temperature Sensor measures infrared radiation energy through infrared detectors (thermal detectors and photoelectric detectors) and converts it into electrical signals, and then converts it into temperature according to the basic law of radiation, and displays the temperature signal through the display instrument , which is mainly composed of optical system, photodetector, signal amplifier and signal processing. FST600-400A Infrared Temperature Sensor can be used for temperature measurement in areas with high or low temperature, high voltage and high-speed machinery, and the measurer does not need to be close to these specific environments, and the product has fast response and high sensitivity. Due to the non-contact measurement, the measurement process will not change the temperature of the measured object, so the measurement results are true and reliable. |
【 Features】
◇ No need to touch the target under test ◇ Convenient for measuring hard-to-reach or moving targets ◇ Fast response and high accuracy ◇ Can meet the requirements of various working conditions ◇ Simple installation, a variety of temperature measurement range optional. |
【Technical Parameters】
Measuring range 0~100℃,200℃,300℃,400℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃ Temperature measurement accuracy ±2% of the measured value or ±2℃, whichever is greater Repeat accuracy ±1% of the measured value or ±1℃, whichever is greater Signal output 4~20mA、RS485 Supply voltage 10~30VDC、5~30VDC(RS485) Optical resolution 20:1 Emissivity 0.95 Response time 300 ms Response wavelength 8-14um Ambient temperature 0~60℃ Storage temperature -40~85℃ Relative humidity 10~95% (no condensation) Shell 304 stainless steel Size 119mm×ф18.7mm (length * diameter) Electrical connections Direct out Protection level IP65
【Scope of application】
◇ Electric equipment ◇ Modern medical field ◇ Food industry ◇ Chemical industry ◇ Achitechive ◇ Machining Control Field |
【External structure】

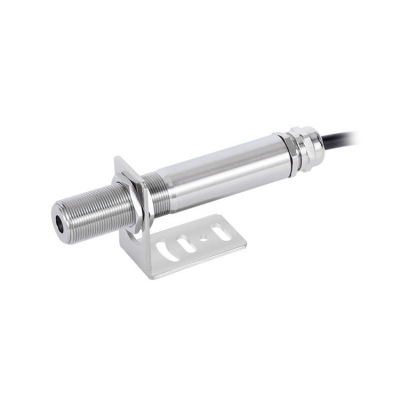

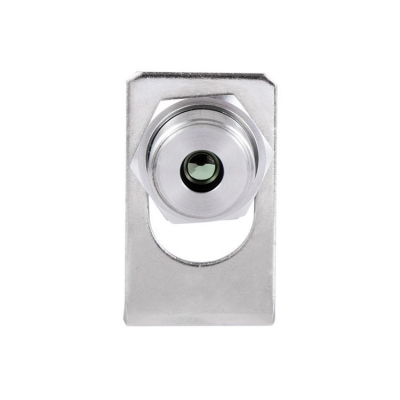

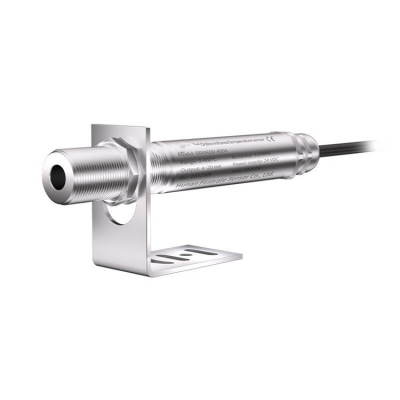

【Detail Pictures】
