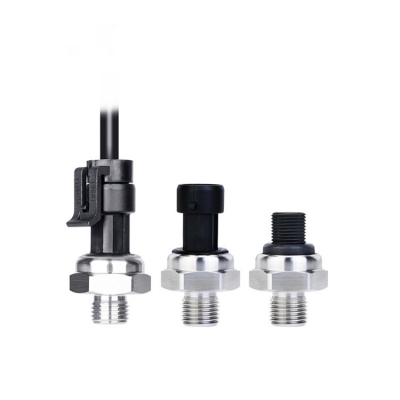

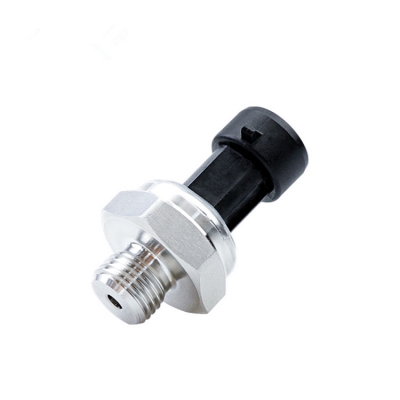

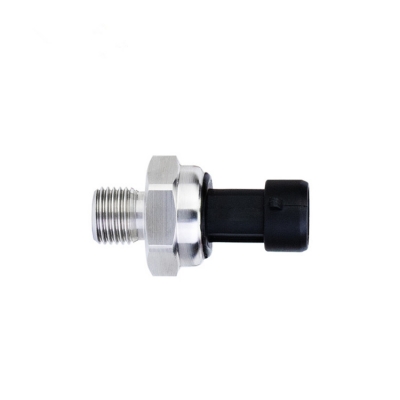

Testermeter-FST800-1200 Air Compressor Pressure Sensor
【Product Description】
| FST800-1200 engine oil pressure sensor is a pressure sensor made of ceramic material through special process. Ceramic materials have the advantages of high elasticity, corrosion resistance, wear resistance, impact and vibration resistance, and good thermal stability. The sensor developed has the characteristics of high measurement accuracy, strong overload capacity, high output, wide range, etc., and is widely used in automobiles, home appliances, air compressors, refrigerators and other equipment. |
【Product Features】
| ● High measurement accuracy and good stability ● Excellent corrosion resistance, wear resistance and vibration resistance ● Wide temperature operating range and compact size ● Strong and compact structure |
【Application Range】
| ● Automobiles ● Household appliances ● Air compressors, refrigerators ● Industrial process detection and control |
【Technical parameter】
Measuring medium Gas, oil Pressure range (bar) 0~10 0~16 0~25 Signal output 0.5~4.5VDC、4~20mA Signal line specifications 3 Wire、2 Wire Supply voltage 5VDC、9~30VDC Precision ±1%FS Operating temperature -40~+135℃ Storage temperature -40~+150℃ Overload pressure 200%FS Breaking pressure 300%FS Impact (11mS) 100g Protection level IP65 Material 304 stainless steel Electrical connections Packard connector Pressure port G1/4, NPT1/4, M12x1.5, NPT1/8
【Detailed description】
