Testermeter-FST800-212 High-precision Pressure Sensor
【Product Description】
| FST800-212 High-precision Pressure sensor produced by our company adopt all stainless steel structure, the pressure detection sensitive components have been automatically tested by computer, and the laser calibration process has carried out zero point and temperature performance compensation in a wide temperature range, which has strengthened the long-term stability of the transmitter in the industrial environment . |
【Product Features】
| ♦ Efficient protection against lightning strikes, radio frequency and electromagnetic interference ♦ Stainless steel structure, good media compatibility ♦ Advanced temperature digital compensation function, wide operating temperature range ♦ High precision, high frequency response, good long-term stability |
【Application scope】
| ● Industrial process detection and control ● Hydraulic and pneumatic control systems ● Industrial machinery manufacturing ● Automated detection systems ● Pump stations and water treatment systems |
【Technical Parameters】

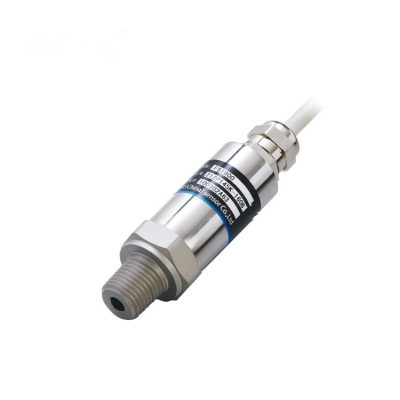

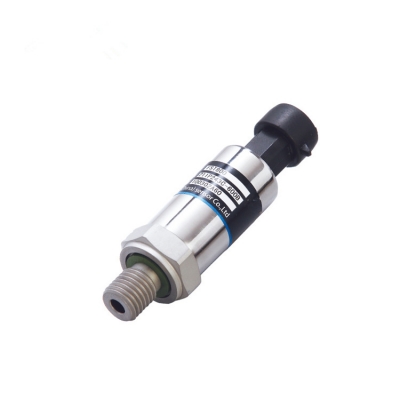

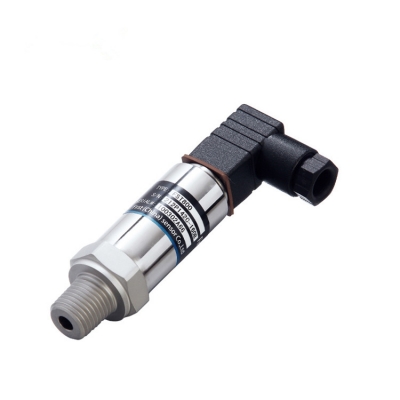

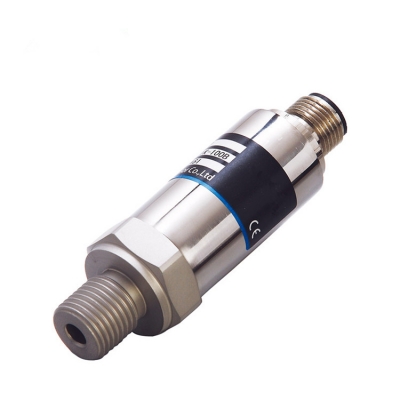

Direct Lead M12 Connector Packard Connector Hirschmann(Mini) Hirschmann(DIN43650) Pressure type Gauge pressure, absolute pressure, sealing pressure Pressure range (bar) 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 400 500 600 Pressure Range (psi) 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K Signal output 4~20mA 0.5-4.5VDC(proportional output) 0.5-4.5VDC 0~5VDC 0~10VDC Signal Line Specifications 2Wire 3Wire Supply voltage 9~30VDC 5VDC 9~30VDC 9~30VDC 15~30VDC Accuracy ±0.1%FS ±0.25%FS Zero temperature drift ±0.02%FS/℃ Sensitivity temperature drift ±0.02%FS/℃ Long-term stability ±0.1%FS Overload pressure 150%FS Destruction pressure 200%FS Mechanical vibration ±20g Response frequency 3.2kHZ Temperature compensation -20~+85℃ Operating temperature -40~+125℃ Storage temperature -40~+125℃ Shock (11ms) 100g Protection class IP65 Material 304 or 316L Electromagnetic Compatibility (EMC) EN61000-6 Certification Program CE RoHS Electrical connections Pressure port M20×1.5 G1/4 NPT1/4 (others can be customized on request)
【Electrical interface and connection method】
【Scope of application】
