Testermeter-Wall Mounted 100AH 200AH 50AH 48V LiFePO4 Solar Battery BMS Home Energy Storage using Lithium Technology Lithium Energy Storage

Main Feature : Testermeter-Wall Mounted 100AH 200AH 50AH 48V LiFePO4 Solar Battery BMS Home Energy Storage using Lithium Technology Lithium Energy Storage
Serial No. : Owen0222

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-Wall Mounted 100AH 200AH 50AH 48V LiFePO4 Solar Battery BMS Home Energy Storage using Lithium Technology Lithium Energy Storage

Feature highlights:

This Wall Mounted 48V LiFePO4 Solar Battery offers a capacity of 4.8KWH to 5.12KWH, supports a max discharge current of 100A, and features a built-in BMS for enhanced safety. With a long cycle life of 6000 times, an IP20 rating, and versatile communication options (CAN, RS485, WIFI, 4G), it ensures reliable home energy storage. The compact size (650*480*190mm) and lightweight design (49kg) make installation easy.

Product Description

Specification

Model				SPW-100AH 48V/100AH 51.2V
Capacity				4.8KWH/5.12KWH
Normal Discharge Current				50A
Max Discharge Current				100A
Voltage				37.5-54.75/40-58.4VDC
Standard Voltage				48VDC/51.2VDC
Max Charging Current				100A
Max Charging Voltage				54.75/58.4V
Circle Times				6000 times
Size(mm)				650480190mm
Weight				49kg
Humidity				20-60%
Suggested DOD Model				90%
IP Rating				IP20
Warranty				10 Years
Communication				CAN/RS485/WIFI/4G/B-tooth communication
BMS				Yes

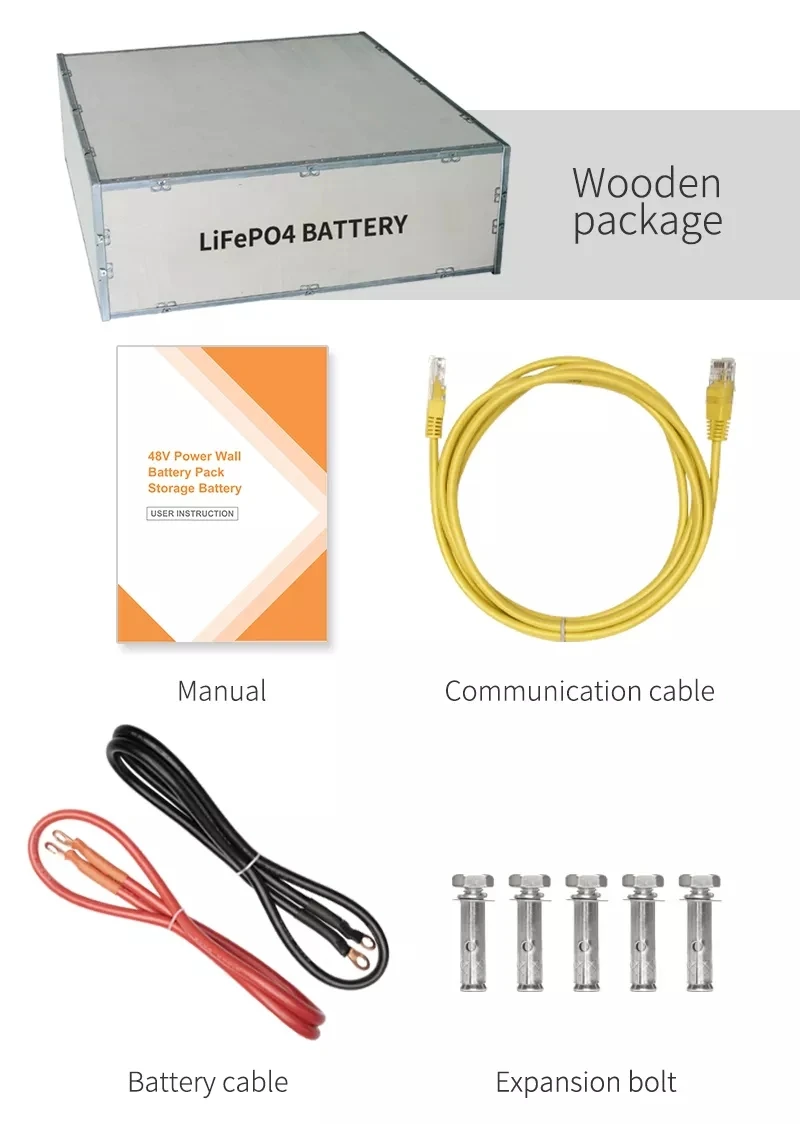

Packing & Delivery

Lable: Testermeter-Wall Mounted 100AH 200AH 50AH 48V LiFePO4 Solar Battery BMS Home Energy Storage using Lithium Technology Lithium Energy Storage
