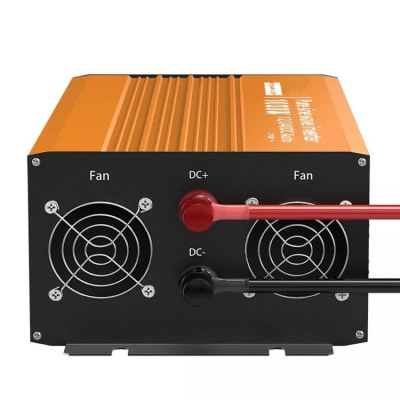

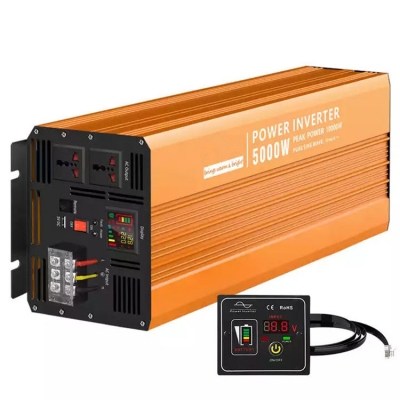

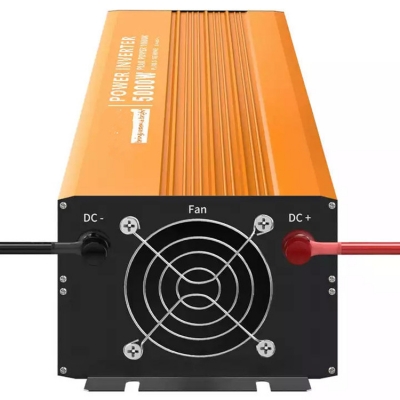

Testermeter-5000W Solar Pure Sine Wave Inverter Solar Inverter Off Grid Power 5kva Inverter 12v 48v High Frequency

2025-07-29 16:04:06

Main Feature : Testermeter-5000W Solar Pure Sine Wave Inverter Solar Inverter Off Grid Power 5kva Inverter 12v 48v High Frequency
Serial No. : Owen0226

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-5000W Solar Pure Sine Wave Inverter Solar Inverter Off Grid Power 5kva Inverter 12v 48v High Frequency

Feature highlights:

This 5000W Solar Pure Sine Wave Inverter delivers reliable off-grid power with 94% max efficiency, intelligent cooling, and multiple protections including low voltage, overload, and short circuit. It supports 110VAC 220VAC output, CE, FCC, and RoHS certifications ensure compliance with international safety standards, offering market access and quality assurance. Suitable for home appliances and solar systems.

Product Description

Specification

Model	YRPE5000-241	YRPE5000-242	YRPE5000-481	YRPE5000-482
Rated Power	5000W
Surge Power	10000W(few seconds)
Input Voltage	24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5VDC
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	1.6A		0.8A
DC Voltage Range	20-31V		40-61V
Low Voltage Alarm	21±0.5V		42±1V
Low Voltage Shut Down	20±0.5V		40±1V
Low Voltage Recovery	24±0.5V		48±1V
Over Voltage Shut Down	31±0.5V		61±1V
Over Voltage Recovery	29V±0.5V		59V±1V

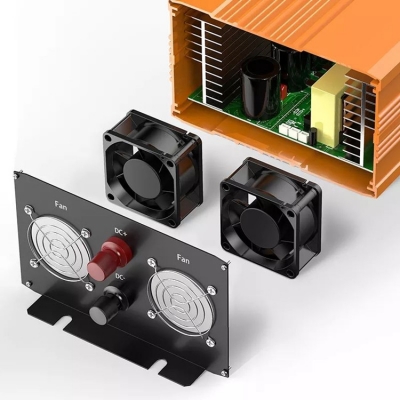

Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	48.521.615.6cm (L×W×H)
Meas./Ctn	63.530.824cm/1pcs
N.W./Unit	12kg
G.W./Ctn	14.2KGS
Packing	Honeycomb carton
Warranty	2 Years
