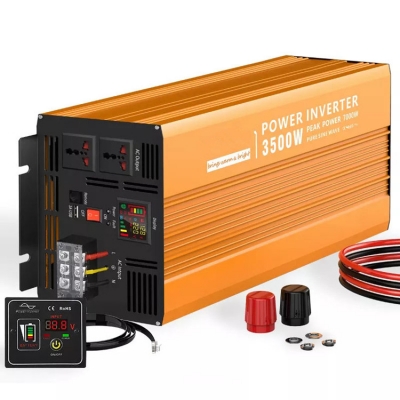

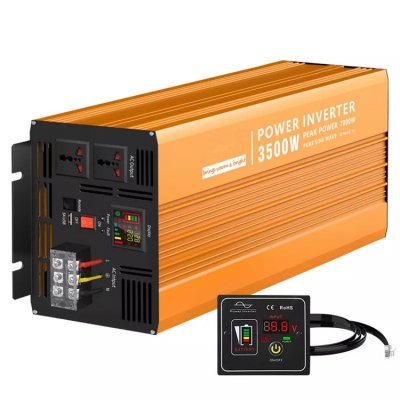

Testermeter-3500W Solar Pure Sine Wave Inverter Solar Inverter Off Grid Power Inverter 12v 48v High Frequency

2025-07-29 16:07:08

Main Feature : Testermeter-3500W Solar Pure Sine Wave Inverter Solar Inverter Off Grid Power Inverter 12v 48v High Frequency
Serial No. : Owen0227

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-3500W Solar Pure Sine Wave Inverter Solar Inverter Off Grid Power Inverter 12v 48v High Frequency

Feature highlights:

High-efficiency 3500W pure sine wave inverter with 94% max output efficiency, intelligent cooling, and multiple protections including low voltage, over voltage, overload, and short circuit. Certified with CE, FCC, and RoHS for compliance with international safety standards, ensuring market access and reliability. Supports versatile applications for home appliances and custom software reengineering.

Product Description

Specification

Model	YRPE 3500W-121	YRPE 3500W-122	YRPE 3500W-241	YRPE 3500W-242	YRPE 3500W-481	YRPE 3500W-482
Rated Power	3500W
Surge Power	7000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 2A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD＜3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature	-10℃ - +50℃
Net Dimension	442015cm (L×W×H)
Meas./Ctn	63.530.824 /1 pcs
N.W./Unit	10kg
G.W./Ctn	11KGS
Packing	Carton
Warranty	2 Years
Warranty	2 Years
