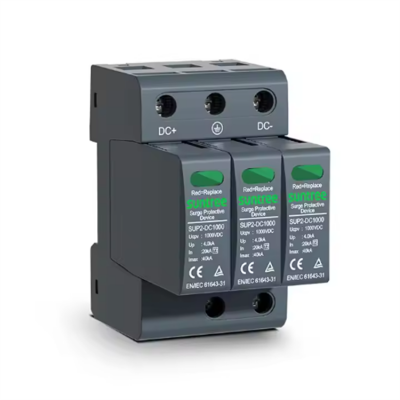

Testermeter-SUP2-DC-CE TUV Solar PV DC SPD Electric Surge Protector 20KA-40ka Solar Surge Protective Device 600/800/1000/1200/1500V

Main Feature :
Serial No. : monica0926

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-SUP2-DC-CE TUV Solar PV DC SPD Electric Surge Protector 20KA-40ka Solar Surge Protective Device 600/800/1000/1200/1500V

Product descriptions from the supplier

Product Description

Specification

SUP2H-PV Series Surge Protector	SUP2H1-PV	SUP2H1-PV	SUP2-PV
UCPV (V DC)	1000V	1200V	1500V
Max System Discharge Current (8/20 μs) [Imax]	40kA	40kA	40kA
Voltage Protection Level [UP]	≤4.0kV	≤4.5kV	≤4.5kV
Voltage Protection Level at 5kA [UP]	≤3.6kV	≤4.0kV	≤5.0kV
Integrated Fuse Breaking Capacity/Interrupting Rating	40kA/1000Vdc	40kA/1200Vdc	40kA/1500Vdc
Technology	Short-Circuit Interruption (SCI) Overcurrent Protection
Operating Temperature Range [TU]	-40°C to +80°C
Nominal Discharge Current (8/20 μs) [(DC+/DC-) --> PE] [n]	20kA
Response Time [tA]	<25ns
Operating State/Fault Indication	Green (good)/Red (replace)
Mounting	35mm DIN Rail per EN 60715
Enclosure Material	UL 94V0 Thermoplastic
Degree of Protection	IP20

Product Details

Lable: Solar Surge Protective Device
