Testermeter-pv-4mm-pv cable 6mm 800V 1000V 1200V 1.5mm cable electrical cable wire wire 25 years product lifetime

Main Feature :
Serial No. : monica0930

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-pv-4mm-pv cable 6mm 800V 1000V 1200V 1.5mm cable electrical cable wire wire 25 years product lifetime

Product descriptions from the supplier

Single Core	Cross section mm²	Strand design No.x ø(mm)	Conductor diameter mm	Conductor diameter Ω /km	Outer diameter mm
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	4.5
PV-1*2.5 mm²	2.5	48x ø 0.25	2.0	8.06	5.3
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	4.97	6.2
PV-1*6.0 mm²	6.0	81x ø 0.3	3.3	3.52	7.2
PV-1*10.0 mm²	10.0	200x ø0.25	4.4	2.12	8.3
PV-1*16 mm²	16.0	224x ø 0.3	5.2	1.95	9.5

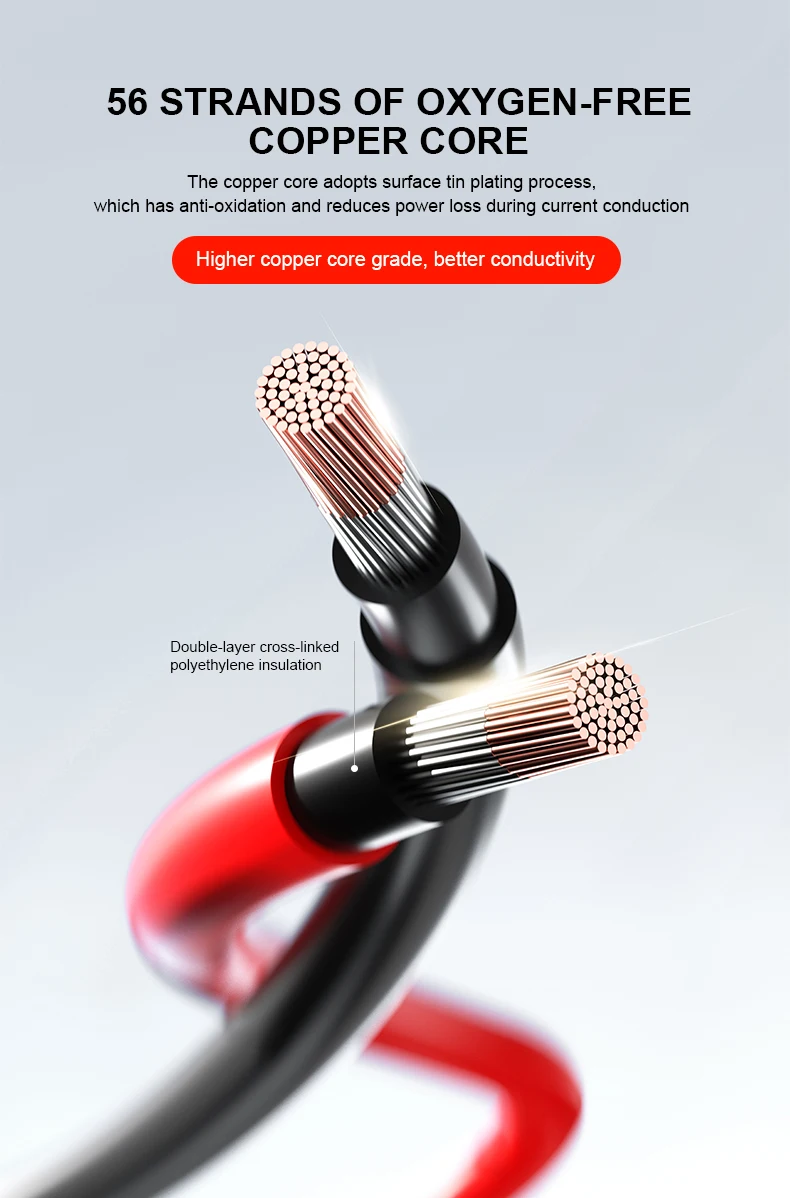

(1) Dual wall insulation,Electron beam cross-linked.

(2) Resistance to UV,water,ozone,fluids,salt,general weathering.

(3) Halogen free,flame,retardant,low toxicity.

(4) Flexibility and stripping performance.

(5) TUV approved.

(6) High current carrying capacity.

(7) Resistance to abrasion.

Lable: cable electrical
