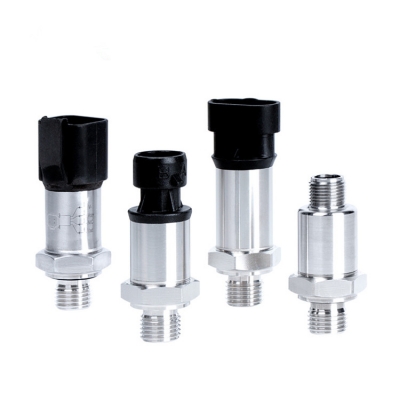

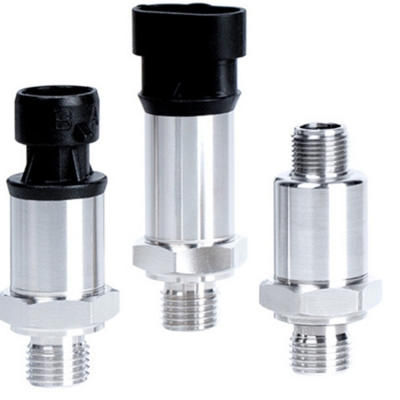

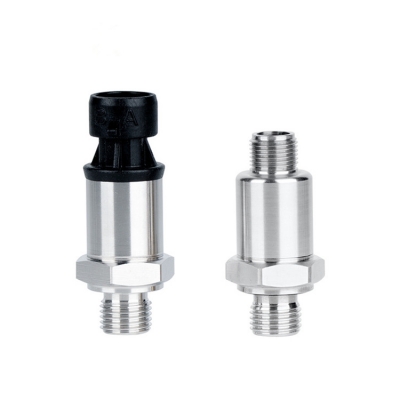

Testermeter-FST800-4001 Hydraulic Pressure Sensor
【Product Description】
| FST800-4001 Hydraulic pressure sensor adopts advanced glass micro-melting process, after high temperature sintering above 500 ℃, the elastomer adopts integrated design, no "O" ring, no welding seam, no hidden leakage, and strong corrosion resistance. Intelligent digital wide-range temperature compensation solves the temperature drift phenomenon of the sensor and improves the measurement accuracy and environmental adaptability of the sensor. Products are widely used in excavators, crane hydraulic systems, oil cylinder hydraulics, compressors, gas dispensers, refrigerators, refrigeration systems, pneumatic control equipment, industrial process testing and control and automated testing systems. |
【Product Features】
| ● Advanced glass micro-melting process, elastic overall structure design, no leakage risk; ● High efficiency lightning protection, anti-RF and electromagnetic interference protection; ● Advanced temperature digital compensation function, wide operating temperature range, compact size; ● High precision, high frequency response, good long-term stability; ● Excellent corrosion resistance, wear resistance, and vibration resistance. |
【Application Scope】
| ● Industrial process detection and control; ● Automated detection system; ● Hydraulic and pneumatic control system; ● Pump station and water treatment system; ● Industrial machinery manufacturing. |
【Technical Parameters】
| Pressure type | gauge pressure |
| Pressure range | 0~100MPa |
| Output signal | 4~20mA, 0.5~4.5VDC (proportional output) |
| Accuracy | ±0.5%FS、±1%FS |
| Supply voltage | 15~30VDC、5VDC |
| Storage temperature | -40℃~+125℃ |
| Medium temperature | -40℃~+125℃ |
| Temperature compensation | -10℃~+70℃ |
| Long term stability | ≤±0.2%FS/year |
| Overload allowed | 300%FS |
| Destruction pressure | 500%FS |
| Shock (11ms) | 100g |
| Zero temperature drift | ＜0.02%FS/℃ |
| Full temperature drift | ＜0.02%FS/℃ |
| Pressure port | M20*1.5, G1/4 (others need to be customized) |
| Electrical connections | M12 (cannot be customized) |
| Protection class | IP67 |
| Material | 304 stainless steel |
【External structure】
【Detailed description】
