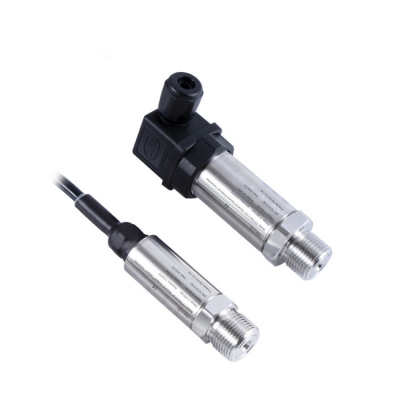

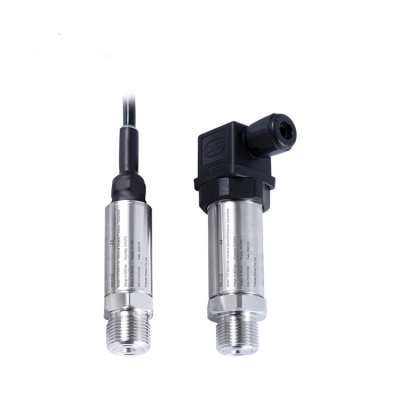

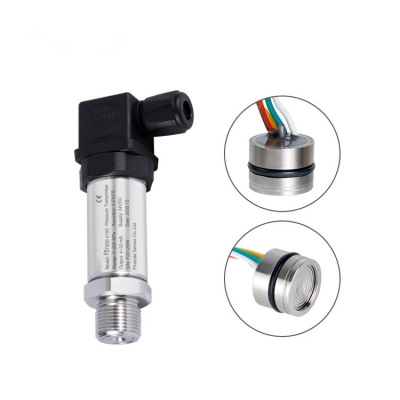

Testermeter-FST800-2100 Industrial Pressure Transducer Gauge pressure
【Product Description】
| FST800-2100 Industrial pressure sensor core adopts wide temperature range compensation, stainless steel structure, good media compatibility, high precision, high frequency response, good long-term stability, and reverse polarity protection. |
【Features】
| ● Core body adopts wide temperature range compensation. ● Stainless steel structure, good media compatibility. ● High precision, high frequency response, good long-term stability. ● Reverse polarity protection. |
【Scope of application】
| ● Industrial process detection and control. ● Hydraulic and pneumatic control system. ● Automated detection system. ● Pumping station and water treatment system. ● Industrial machinery manufacturing. |
【Technical Parameters】
Type of pressure Gauge pressure, absolute pressure Pressure range -100kPa…0kPa~20kPa…60MPa Output signal 4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC Signal line specifications 2Wire 3Wire 3Wire 3Wire Supply voltage 9~30VDC 5VDC/9~30VDC 9~30VDC 15~30VDC Precision ±0.5%FS ±1%FS Long-term stability ≤0.2%FS/year Overload pressure 200%FS Breaking pressure 300%FS Impact (11mS) 100g Protection level lP65 Shell material 304 stainless steel Mechanical vibration ±20g Storage temperature -40~+125℃ Operating temperature -20~+85℃ Compensation temperature: -10~+70℃ Pressure port M20×1.5, G1/4, NPT1/4 can be equipped with other threads Electrical connections Direct lead, large Hessman, watertight connector (IP68) Remarks Current type can be equipped with display (15~30VDC power supply)
【Product size】
【Detailed description】
