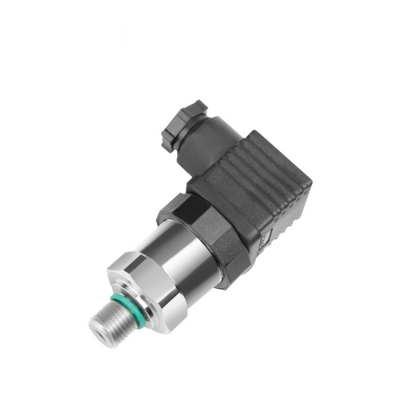

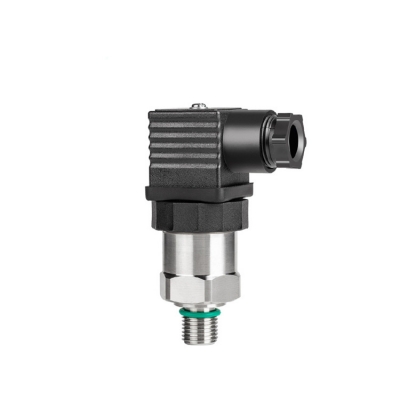

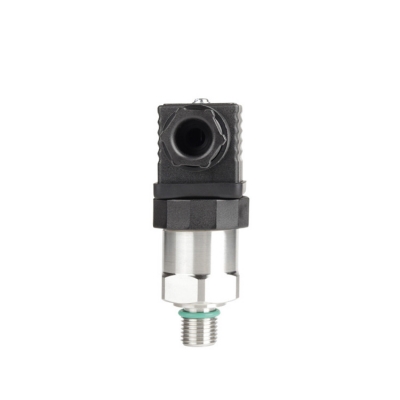

Testermeter-FST800-1000 4 20Ma Pressure Transmitter for oil
【Product Description】
FST 800-1000 Industrial Pressure Sensor produced by our company adopt all stainless steel structure, and the pressure detection sensitive components are made of ceramic materials through special process. The laser calibration process performs zero and span calibration over a wide temperature range, enhancing the long-term stability of the transmitter/sensor in industrial environments. The pressure chamber adopts 304 stainless steel processing technology, and the whole adopts laser welding technology, which is safe and leak-free. FST 800-1000 Industrial Pressure Sensor has a built-in digital circuitwith strong resistance to radio frequency and electromagnetic interference and automatic temperature compensation. It has strong anti-interference ability, wide working range and long-term operation. Good stability and other characteristics. |
【Features】
◇ Easy installation and strong versatility ◇ Efficient lightning protection, strong anti-radio frequency and electromagnetic interference protection ◇ Anti-surge and reverse polarity protection ◇High elasticity, wear resistance, impact resistance, vibration resistance and corrosion resistance ◇ Advanced temperature digital compensation function |
Applications
● Industrial process and control ● Automated detection ● Hydraulic and full-motion control ● Water treatment system ● Industrial machinery manufacturing ● Pumping stations |
【Technical indicators】
| Measuring mediu | water, gas, oil，Hydraulic |
| Range | 5, 7, 10, 15, 20, 25, 32, 50Bar (gauge pressure) |
| Output signal | 4~20mA |
| Precision | ±1%FS |
| Supply voltage | 9~30V DC |
| Medium temperature | -40℃~+85℃ |
| Storage temperature | -40℃~+125℃ |
| Temperature compensation | -10℃~+70℃ |
| Long-term stability | ≤±0.2%FS/year |
| Allow overload | 200%FS |
| Breaking pressure | 300%FS(≤250bar) |
| Shock (11mS) | 100g |
| Zero temperature drift | ±0.02%FS/℃ |
| Full scale temperature drift | ±0.02%FS/℃ |
| Pressure port | M20*1.5, G1/4; optional NPT1/4, G1/2 |
| Electrical connections | Large Hessmann connector, others can be customize |
【Detailed description】
