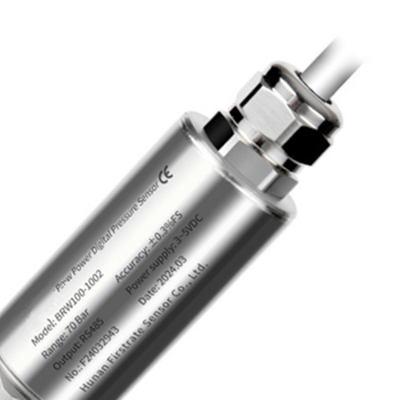

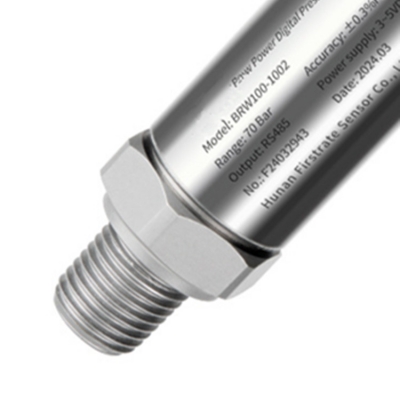

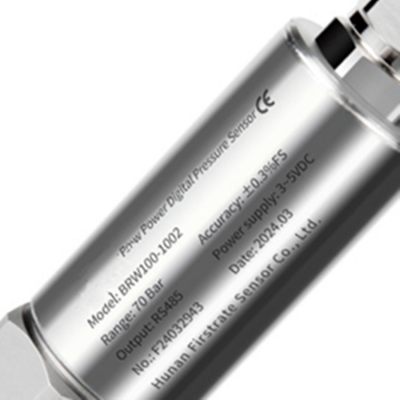

Testermeter-FST100-1002 (RS485) Low Power Pressure Sensor
【Product Description】
| FST100-1002 Low Power Pressure sensor are based on MEMS technology, the use of advanced glass micro-solution process, to avoid the temperature, humidity, mechanical fatigue and media on the product to strengthen the long-term stability of the sensor in the industrial environment. The pressure chamber is made of A17-4PH stainless steel with no weld or "O" ring, no leakage. Is a low-power digital pressure sensor, imported high-quality pressure-sensing core, combined with microprocessor technology and sensor digital conversion technology design, the overall use of laser welding process, safety and no leakage, advanced temperature digital compensation, a wide range of operating temperatures. Ultra-low power consumption design, easy to use, good stability. Suitable for fire water, water, heating and other Internet of Things and other low-power battery-powered occasions. |
【Features】
● With low voltage, low power consumption, easy installation and use ● Excellent resistance to corrosion, wear and vibration ● Wide temperature operating range, compact size ● High product precision and good long-term stability |
【Scope of application】
● Industrial Process Detection and Control ● Automated inspection system ● Pumping Stations and Water Treatment Systems ● Chemical, Hydraulic and Pneumatic Control Systems |
Technical Parameters
Pressure type Gauge pressure, absolute pressure Pressure range (bar) -1~0~0.2...600 Signal output RS485 Supply voltage 3~4.2V DC, suitable for battery power supply Current consumption ≤2.5mA Stand-by current ≤0.2mA Accuracy ±0.3 %FS ±0.5 %FS Temperature compensation -20~+85℃ Operating temperature -40~+85℃ Long-term stability (1 year) ±0.2 %FS Overload pressure 200%FS Destruction pressure 300%FS Protection class IP65 Material 304 stainless steel Electrical connections Direct Lead, Hessman, Non-Threaded Explosion Proof Connector (IP67) Pressure port M20X1.5, G1/4, NPT1/4, (others can be customized on request)
【External structure】
【Detailed description】
