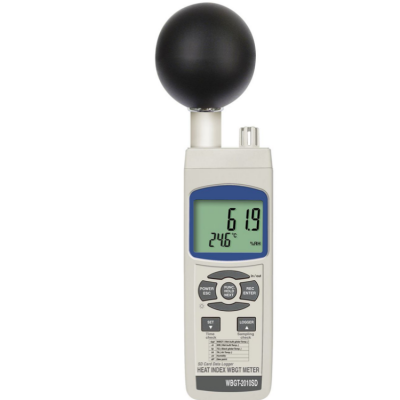

WBGT 2010SD HEAT INDEX WBGT METER

  • Main Feature :
  • Serial No. : Zoe785
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

WBGT-2010SD HEAT INDEX WBGT METER



Exceptional Features of the WBGT-2010SD:

1. IEC 61672 Class 2 Compliance: Designed to meet IEC 61672 class 2 standards with A & C frequency weighting networks and time weighting modes (Fast and Slow).

2. Real-Time Data Logger: Saves measuring data along with time information (year, month, date, hour, minute, second) into the SD memory card, enabling easy download to Excel for further data analysis without extra software.

3. Comprehensive Measurements:Measures WBGT (indoor/outdoor), black globe temperature, humidity, air temperature, wet bulb temperature, and dew point temperature.

4. User-Friendly Design: Equipped with a large LCD display with green backlight for easy reading, and user-friendly controls including data hold, peak hold, max/min recall, and adjustable WBGT alarm settings.

5. Advanced Connectivity: Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems.



Technical Specifications:

- Display:

  - Type: Large LCD with green backlight (ON/OFF)

  - Size: 52 mm x 38 mm



- Measurement Functions:

  - WBGT (Wet Bulb Globe Temperature):

    - Range:

      - Indoor: 0 to 59℃ / 32 to 138℉

      - Outdoor: 0 to 56℃ / 32 to 132℉

    - Resolution: 0.1℃

    - Accuracy:

      - Indoor: ±1℃ (15 to 59℃) / ±1.5℃ (Others)

      - Outdoor: ±2℃ (15 to 56℃) / ±2.7℃ (Others)

  - Black Globe Temperature (TG):

    - Range: 0 to 80℃ / 32 to 176℉

    - Resolution: 0.1℃

    - Accuracy: ±0.6℃ (15 to 40℃) / ±1.1℉

  - Humidity:

    - Range: 5% to 95% RH

    - Resolution: 0.1% RH

    - Accuracy:

      - ≥70% RH: ±(3% reading + 1% RH)

      - <70% RH: ±3% RH

  - Dew Point Temperature:

    - Range: -25.3 to 48.9℃ / -13.5 to 120.1℉

    - Resolution: 0.1℃

    - Accuracy: Calculated from humidity and air temperature measurements

  - Air Temperature:

    - Range: 0 to 50℃ / 32 to 122℉

    - Resolution: 0.1℃

    - Accuracy: ±0.8℃ / ±1.5℉

  - Wet Bulb Temperature:

    - Range: -21.6 to 50.0℃ / -6.9 to 122.0℉

    - Resolution: 0.1℃

    - Accuracy: Calculated from humidity and air temperature measurements



- Data Logger:

  - Automatic: 1 second to 3600 seconds

  - Manual: Push the data logger button once to save data

- **SD Card Capacity:** 1 GB to 16 GB



- Power Supply:

  - DC 1.5V batteries (UM3, AA) x 6 PCs or DC 9V adapter (optional)

  - Power Consumption: Approx. DC 5 mA (normal operation without SD card and LCD backlight off), Approx. DC 25 mA (when saving data to SD card and LCD backlight off), Approx. DC 36 mA (with LCD backlight on)



- Operating Environment:

  - Temperature: 0 to 50℃

  - Humidity: Less than 85% RH



- Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inches)

- Weight: 489 g (1.08 lb)



Accessories Included:

- Instruction Manual: 1 PC

- Black Globe Ball with Sensor: 1 PC

- Soft Carrying Case (CA-05B): 1 PC



Optional Accessories:



- SD Card (2 GB)

- AC to DC 9V Adapter

- USB Cable (USB-01)

- RS232 Cable (UPCB-02)

- Data Acquisition Software (SW-U801-WIN)

- Hard Carrying Case (CA-08)



Advanced Features:

- Auto/Manual Data Logging: Enhances data management and analysis capabilities.

- Multiple Measurement Parameters: Provides comprehensive environmental data.

- RS232/USB Interface: Enhances data management and integration with computer systems.

- Adjustable WBGT Alarm: Alerts when WBGT value exceeds the set threshold.

- Large LCD Display: Offers clear and easy-to-read measurements with green backlight.

- Durable Housing: Heavy-duty and compact housing ensures durability and ease of use in the field.



Applications:

- Occupational Safety: Monitor and manage heat exposure in workplace environments to ensure compliance with safety standards.

- Environmental Monitoring: Measure environmental conditions for assessment and compliance.

- Sports and Physical Activities:Monitor heat exposure during sports and physical activities to prevent heat-related injuries.



Invest in the WBGT-2010SD Heat Index WBGT Meter for precise and reliable environmental measurements, ensuring high performance and versatility in various industrial, environmental, and sports applications.



Specifications

Circuit

Custom one-chip of microprocessor LSI
circuit.

Display

LCD size : 52 mm x 38 mm
LCD with green backlight ( ON/OFF ).

Measurement

Wet bulb globe temperature ( WBGT )
@ Indoor/Outdoor
Black globe temperature ( TG )
Air temperature ( TA )
Wet bulb temperature ( WB )
Humidity
Dew point temperature

WBGT formula

Indoor/Outdoor and no sun :
WBGT = ( 0.7 x WB ) + ( 0.3 x TG )
Outdoor and full sun :
WBGT = ( 0.7 x WB ) + ( 0.2 x TG ) + ( 0.1 x TA )

WBGT alarm setting

Adjustable WBGT alarm setting, if the WBGT value over the alarm threshold, the buzzer will sound along with the flashing Display.

Datalogger Sampling Time Setting range

Auto 1 second to 3600 seconds
@ Sampling time can set to 1 second, but memory data may loss
Manual Push the data logger button once will save data one time.
@ Set the sampling time to second
@ Manual mode, can also select the 1 to 99 position ( Location ) no.

Data error no.

0.1% of total saved data max.

Memory Card

SD memory card. 1 GB to 16 GB

Advanced setting

* Set clock time ( Year/Month/Date, Hour/Minute/ Second )
* Set WBGT alarm value
* Decimal point of SD card setting
* Auto power OFF management
* Set beep Sound ON/OFF
* Select the temperature unit to ℃ or ℉.
* Set sampling time
* SD memory card Format

Data Hold

Freeze the display reading.

Memory Recall

Maximum & Minimum value.

Sampling Time of Display

Approx. 1 second.

Data Output

RS 232/USB PC computer interface.
* Connect the optional RS232 cable Dew Point Temp.
UPCB-02 will get the RS232 plug.
* Connect the optional USB cable
USB-01 will get the USB plug

Operating Temperature

0 to 50 ℃

Operating Humidity

Less than 85% R.H.

Power Supply

* AAlkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
* ADC 9V adapter input. ( AC/DC poweradapter is optional ).

Power Current

Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 5 mA.
When SD card save the data but and LCD Backlight is OFF) : Approx. DC 25 mA.
* AIf LCD backlight on, the power consumption will increase approx. 11mA.

Weight

489 g/1.08 LB.

Dimension

Meter 177 x 68 x 45 mm
Black brass ball (7.0 x 2.7x 1.9 inch)Round, 75 mm dia

Accessories Included

* Instruction manual:1 PC
* Black brass ball ( with sensor :1 PC
* Soft carrying case, CA-05B: 1 PC

Optional Accessories

* SD Card ( 2 GB )
* AC to DC 9V adapter.
* USB cable, USB-01.
* RS232 cable, UPCB-02.
* Data Acquisition software,SW-U801-WIN.
* Hard carrying case, CA-08,
Size : 370 x 310 x 115 mm.
