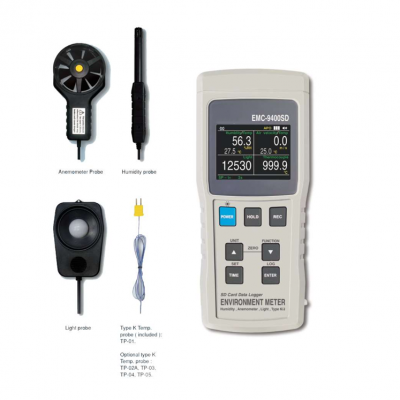

EMC-9400SD Achieve Precision and Comprehensive Data Logging with a Multi-Function Environment Meter
Exceptional Features of the EMC-9400SD:
1. Multi-Function Capability: Combines a humidity/temperature meter, anemometer, light meter, and Type K/J thermometer into a single instrument, offering versatility for various measurement needs. 2. Real-Time Data Logger: Saves measuring data along with time information (year, month, date, hour, minute, second) into the SD memory card, enabling easy download to Excel for further data analysis without extra software. 3. High Accuracy and Resolution: Features high accuracy and resolution for all measurement functions, ensuring precise and repeatable measurements. 4. User-Friendly Design: Equipped with a large LCD display with green backlight for easy reading, and user-friendly controls including data hold, max/min readings recall, and auto power off to save battery life. 5. Advanced Connectivity: Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems. |
Technical Specifications:
- Display: - Type: Large LCD with green backlight (ON/OFF) - Size: 52 mm x 38 mm
- Measurement Functions: - Humidity/Temperature: - Humidity: - Range: 5 to 95% RH - Resolution: 0.1% RH - Accuracy: ±(3% reading + 1% RH) (≥70% RH), ±3% RH (<70% RH) - Temperature: - Range: 0 to 50℃, 32 to 122℉ - Resolution: 0.1℃ - Accuracy: ±0.8℃, ±1.5℉ - Dew Point Temperature: - Range: -25.3 to 48.9℃ - Resolution: 0.1℃ - Accuracy: Calculated from humidity/temperature measurement - Wet Bulb Temperature: - Range: -21.6 to 50.0℃ - Resolution: 0.1℃ - Accuracy: Calculated from humidity/temperature measurement - Air Velocity: - Range: - m/s: 0.4 to 25.0 m/s - km/h: 1.4 to 90.0 km/h - mile/h: 0.9 to 55.9 mile/h - knots: 0.8 to 48.6 knots - ft/min: 80 to 4930 ft/min - Resolution: - m/s: 0.1 m/s - km/h: 0.1 km/h - mile/h: 0.1 mile/h - knots: 0.1 knots - ft/min: 1 ft/min - Accuracy: ±(2% + 0.2 m/s), ±(2% + 0.8 km/h), ±(2% + 0.4 mile/h), ±(2% + 0.4 knots), ±(2% + 40 ft/min) - Air Flow: - CMM (m³/min): - Range: 0 to 54,000 CMM - Resolution: 0.001 to 1 CMM - CFM (ft³/min): - Range: 0 to 1,907,000 CFM - Resolution: 0.001 to 100 CFM - Light: - Range: - LUX: 0 to 20,000 LUX - Ft-cd: 0 to 1,860 Ft-cd - Resolution: - LUX: 1 LUX - Ft-cd: 0.1 Ft-cd - Accuracy: ±(5% rdg ± 8 dgt)
- Power Supply: - 1.5V AA (UM3) batteries x 6 PCs or DC 9V adapter (optional) - Power Consumption: - Normal operation (w/o SD card save data and LCD backlight OFF): Approx. DC 15 mA - With SD card save data: Approx. DC 36 mA
- Operating Environment: - Temperature: 0 to 50℃ - Humidity: Less than 85% RH
- Dimensions: - Main Instrument: 135 x 60 x 33 mm - Anemometer Probe: 105 x 46 x 29 mm
- Weight: 515 g (1.13 lb)
Accessories Included: - Instruction Manual: 1 PC - Anemometer Probe (AM-01): 1 PC - Humidity Probe (HT-01): 1 PC - Light Probe (LX-01): 1 PC - Type K Thermocouple Probe (TP-01): 1 PC - Hard Carrying Case (CA-08): 1 PC
Optional Accessories: - SD Memory Card (4 GB) - AC to DC 9V Adapter - USB Cable (USB-01) - RS232 Cable (UPCB-02) - Data Acquisition Software (SW-U801-WIN)
Advanced Features: - Microprocessor Circuit: Ensures high accuracy and reliability. - Auto/Manual Data Logging: Enhances data management and analysis capabilities. - Multiple Sensor Compatibility: Provides flexibility for various environmental parameters. - RS232/USB Interface: Enhances data management and integration with computer systems. - 100-Point Data Logger: Saves up to 100 data points with recall for detailed analysis. - Auto Power Off: Conserves battery life by shutting off the meter automatically. - Complete Set: Includes all necessary probes and a hard carrying case for convenience and protection. |
Specifications
Display | TFT LCD size : 52 mm x 38 mm |
Measurement | / |
Operating Humidity | Less than 85% R.H. |
Operating Temperature | 0 to 50 ℃. |
Over Input Display | / |
Power Supply | * Alkaline or heavy duty DC 1.5 V battery |
Power Consumption | / |
Weight | 515 g/ 1.13 LB. |
Dimension | Meter 135 x 60 x 33 mm. |
Standard Accessory | / |
Optional Accessories | / |
