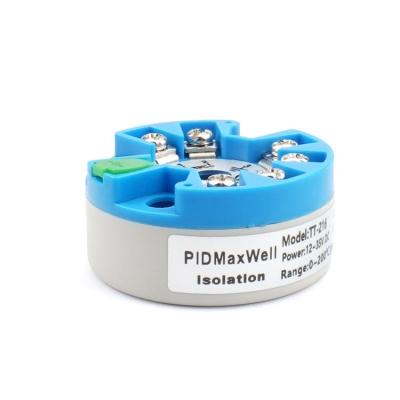

Testermeter-TT-216-High Quality OEM & ODM Support Galvanically Isolated 4-20mA Digital Temperature Transmitter ABS Material
Features
| This product, through the technical combination of "Isolation and Immunity + Precise Conversion + Flexible Adaptation", perfectly solves the three pain points of "signal distortion, environmental interference, and multi - scenario compatibility" in industrial temperature measurement. In the food processing assembly line, its accuracy of 0.1% FS can ensure that the temperature control deviation of pasteurization is ≤ ±0.5℃; in the monitoring of chemical pipelines, the 3kV isolation ability can effectively resist the electromagnetic interference of the pump group; and the modular customization ability enables it to quickly adapt to the signal conversion requirements of special equipment such as pharmaceutical freeze - dryers and new energy battery test benches, becoming the "signal hub" of the industrial temperature control system. |
Product descriptions
| Input | RTD/TC , Resistance ,Voltage |
| output | 4-20mA |
| max load | Max(V .Power supply-7.5V)/0.22A (Current output) |
| Measurement | temp-linearity ,resistance-linearity,voltage-linearity |
| Ciruit limit | ≤22mA |
| Response time | ≤1s |
| Alarm current | sensor damger or sensor turnoff output is 3.9mA or22mA |
| Accuracy | 0.1%FS |
| Power supply | 12-40VDC |
| Protection | IP00,IP66 |
