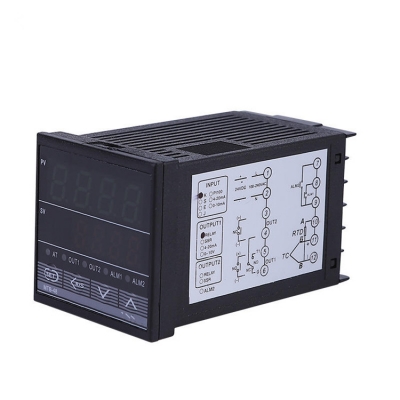

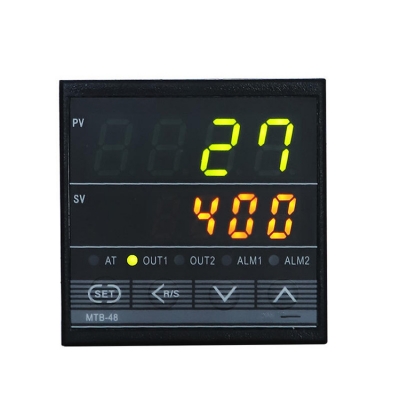

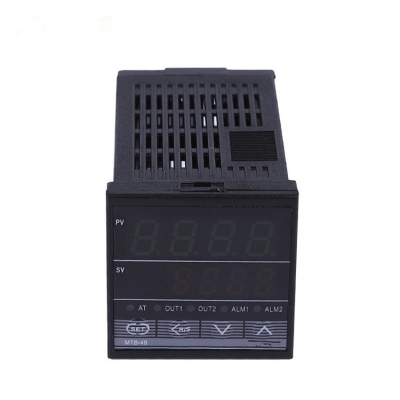

Testermeter-MTB-48-R-1-96-NN-Digital PID Controller LED Display 4-20mA 0-5VDC 0-10VDC InputOutput Industrial Temperature Controller OEM ODM
Features
High-precision temperature control capability Adopting digital PID self-tuning algorithm, it supports automatic calculation and optimization of PID parameters (P proportional, I integral, D derivative). It can dynamically adjust the control strategy according to load characteristics, achieving a measurement accuracy of ±0.5% FS and a display resolution of ±1 digit, meeting the stringent requirements of industrial-grade temperature control. The sampling rate reaches 100ms, enabling rapid response to temperature fluctuations, and is suitable for dynamic temperature control scenarios such as heating furnaces and reaction kettles. Multi-mode control supportIt is compatible with both PID continuous regulation and ON-OFF position control modes, and can adapt to different load types (such as resistive heating, inductive cooling) through parameter switching. The built-in Fuzzy logic optimization function has a significant control effect on nonlinear, large-lag systems (such as plastic molding equipment). |
Product descriptions
| MTB- 1 - 2 - 3 - 4 - 5 - 6 (Basic model: MTB-48-R-1-96-NN) | ||
| Default Input: TC/RTD . (Please tell us if you require universal input .) | ||
| 1: Size | 48 | 48mm*48mm |
| 49 | 48mm*96mm(Vertical) | |
| 72 | 72mm*72mm | |
| 94 | 96mm*48mm(Horizontal) | |
| 96 | 96mm*96mm | |
| 2: output | R | Relay output |
| V | SSR Drive/Voltage pulse output | |
| D | 4-20mA output | |
| E | 0-10Vdc | |
| F | 0-20mA | |
| 3: Alarm | 1 | 1 Alarm |
| 2 | 2 Alarm | |
| 4::Power Source | 96 | 85-265VAC |
5:Auxiliary power supply | 1 | 24VDC |
| N | Without Auxiliary power supply | |
