TD980 12KV Smart Touch Screen Transformer Capacitance &Tan Delta Tester

  • Main Feature :
  • Serial No. : Zoe772
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

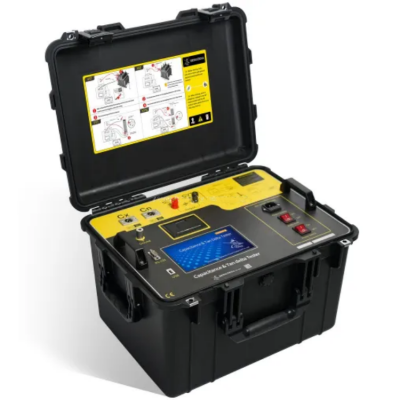

TD980 12KV Smart Touch Screen Transformer Capacitance &Tan Delta Tester



Product Description

TD980 12KV Capacitance and Tan Delta Tester is used to measure the dissipation factor (PF) of insulating materials in heavy interference sites such as power plants or power substations. It can also be used in laboratory for high accuracy capacitance and dissipation measurement. The tester is all-in-one unit which includes precision digital bridge, power unit, internal reference capacitor (Cn), booster transformer and other electronic circuits. 7-inch HD color touch screen, easy to use.When started, it runs automatically. All test results can be automatically stored and printed by the built-in printer. PC software can control instrument operation and automatically generate test reports in Excel format.


Features

High noise suppression and advanced variable frequency tecnology  resulting in extremely accurate and clean measurements even in the most severe conditions.

· 7 "high HD color touch screen with stylus pen and buttons

· Test mode :UST+GST+CVT+ GSTg+RTO+4 Channel(RTO,4 Channel only for CTD-8207)

· Automatic memory with time/date, up to 1000 test data.

· Multiple protection ensures instrument and operator safety

· Built-in thermal printer · USB port , easy to transfer test data to USB memory stick.

· Powerful PC software can control instrument operation , and can automatically generate test report in Excel format.

· Rugged carrying case protection rating IP67.

· All-in-one and lightweight.



Specifications

Accuracy

Cx

±(0.5%rdg+0.5pF)

tgδ

  ±(1%rdg+0.00040)

Anti-interference index

Frequency conversion anti-interference, in 200% interference can still achieve the above accuracy

Capacitance range

internal high voltage

3pF~60000pF/12kV  60pF~1μF/0.5kV

resolution

Max. 0.001pF, 4 dgt

tgδ range

No limitation, capacitance, inductance, resistance can be automatically identified

Test current range

10μA~5A

Internal high voltage

voltage setting range

0.5~12kV

maximum output current

300 mA (2 minutes)

100 mA (continuous)

Voltage regulation method

Rise or drop smoothly

test frequency

Fixed frequency ( 45~65Hz).

Automatic dual variable frequency (46/54Hz, 45/55Hz,49/51HZ…)

frequency resolution

±0.01Hz

CVT self-excited low voltage output

Output voltage 3-50V, output current 3-30A

Test duration

About 30s, vary between test modes

Protection

Earth loop ground monitoring / overcurrent protection etc.

Power supply

180V ~ 270VAC, 50/60HZ

Display

Color touchscreen Display (ruggedized for field use)

Memory

Automatic memory with time/date stamp,up to 1000 data

RS232

Standard RS232 port

USB

Can transfer test data from internal memory to U flash drive

Pinter

Built-in thermal printer

PC software

Yes

Working Temperature

-10℃~50℃

Relative humidity

<90%

Safety standard

IEC / ANSI 61010-1

Shock & Vibration

IEC 60068-2-27, IEC 60068-2-7 & ASTM D999.75

Dimensions

340*340*460mm (13.8”*18.8”*12.2”)

Weight

25.8kg (56.8lb)
