Testermeter-SE RS485 0.2 MM 0.5 MM PUL OUTPUT HIGH PRECISE ABS PLASTIC TIPPING BUCKET RAIN GAUGE

  • Main Feature :
  • Serial No. : Lisa0858
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter-SE RS485 0.2 MM 0.5 MM PUL OUTPUT HIGH PRECISE ABS PLASTIC TIPPING BUCKET RAIN GAUGE

Product descriptions

Product Name
0.5mm Pulse/RS485 output ABS  tipping bucket rain gauge

Material
ABS

Resolution
0.2mm/0.5mm

Rain inlet size
φ200mm

Sharp edge
40～45 degree

Rain intensity range
0 mm~4mm/min; Maximum rain intensity allowed 8mm/min.

Measurement accuracy
≤±3%

Output
A: RS485 (standard Modbus-RTU protocol, device default address: 01)

B: Pulse output


C:4-20mA/0-5V/0-10V

Power supply
4.5~30V DC (when the output signal is RS485)



Power consumption
0.24 W

Way of sending
Two-way reed switch on and off signal output

Working environment
Ambient temperature: 0 ° C ~ 70 ° C

Relative humidity
<100%(40℃)

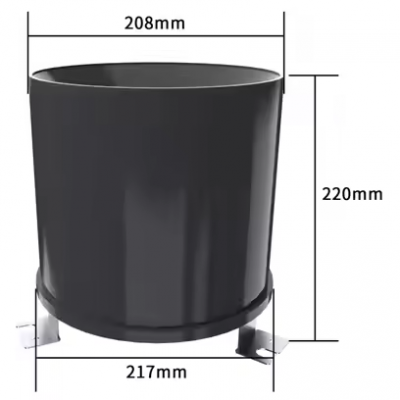

Size
φ220mm×217mm

图片关键词图片关键词



Lable: SE RS485 RAIN GAUGE
