Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

2025-07-07 14:34:13

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Main Feature :
Serial No. : Lisa0860

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-RS485 WIRELESS IOT SOIL MEASURING INSTRUMENT MODBUS 4-20MA 0-5V AGCL REFERENCE PROBE SOIL PH SENSOR

Product description

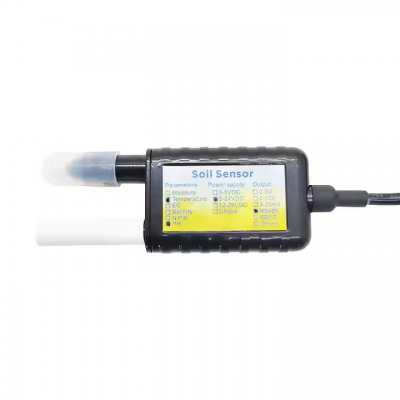

Product Name	Soil PH and temperature 2 in 1 sensor
Probe type	AgCl Anti-corrosion reference probe
Measurement parameters	Soil PH Value; Soil temperature value
Measuring range	3 ~ 10 PH; -40℃～85℃
Measurement accuracy	±0.2PH; ±0.4℃
Resolution	0.1 PH; 0.1℃
Outputsignal	A:RS485 (standard Modbus-RTU protocol, device default address: 01)
	B:4 to 20 mA (current loop)
	C:0-5V /0-10V

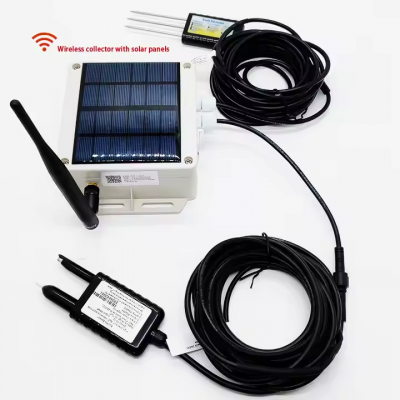

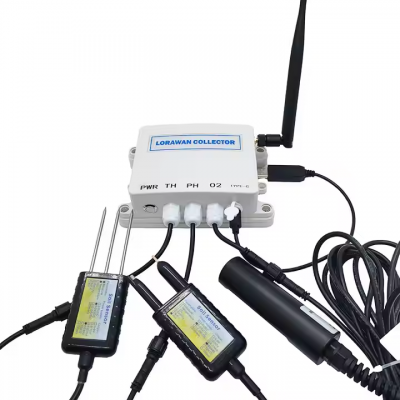

Output signal with wireless	A:LORA/LORAWAN
	B:GPRS
	C:WIFI
	D:NB-IOT
Software	Can send the free server and software to see the real time data and download the history data in the PC or mobile end with our wireless module
Supply voltage	2～5VDC /5-24VDC
Supply voltage	2～5VDC /5-24VDC
Working temperature range	-30 ° C ~ 70 ° C
Calibration	Three points calibration
Sealing material	ABS engineering plastic, epoxy resin
Waterproof grade	IP68
Cable specification	Standard 2 meters (can be customized for other cable lengths, upto 1200 meters)

Lable: RS485 PROBE SOIL PH SENSOR
