Testermeter-RS485 LORA LORAWAN 2 IN1 DIGITAL SIGNAL GPRS AGRICULTURE SOIL MOISTURE AND TEMPERATURE SENSOR

Main Feature :
Serial No. : CJ1033

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-RS485 LORA LORAWAN 2 IN1 DIGITAL SIGNAL GPRS AGRICULTURE SOIL MOISTURE AND TEMPERATURE SENSOR

Product description

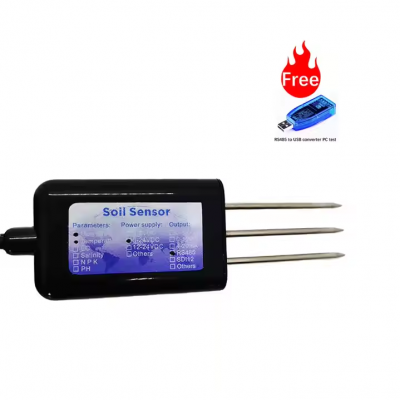

Product Name	Soil Moisture and temperature 2 in 1 sensor
Probe type	Probe electrode
Measurement parameters	Soil moisture and temperature Value
Temperature Measuring range	-30 ~ 70 ° C
Temperature Measurement accuracy	±0.2°C
Moisture Measuring range	0 ~ 100%(m3/m3)
Moisture Measurement accuracy	±2% (m3/m3)
Measuring area	A cylinder with a diameter of 7 cm and a height of 7 cm centered on thecenter probe
Outputsignal	A:RS485 (standard Modbus-RTU protocol, device default address: 01)
	B:4 to 20 mA (current loop)
	C:0 ~ 2V, 0 ~ 2.5V, 0 ~ 5V, 0 ~ 10V Optional
Output signal with wireless	A:LORA/LORAWAN
	B:GPRS
	C:WIFI
	D:NB-IOT
Supply voltage	5 ~ 24V DC (when the output signal is 0 ~ 2V, 0 ~ 2.5V,RS485) 12~24VDC (when the output signal is 0~5V, 0~10V, 4~20mA)
Supply voltage
Working temperature range	-30 ° C ~ 70 ° C
Stabilization time	<1 second
Response time	<1 second
Sealing material	ABS engineering plastic, epoxy resin
Waterproof grade	IP68
Cable specification	Standard 2 meters (can be customized for other cable lengths, upto 1200 meters)

Lable: RS485 LORA LORAWAN 2 IN1
