Testermeter-RS6541 Factory Supply Soil Moisture and Temperature 2 in 1 Sensor 0-5V 0-10V 4-20mA Output Durable IP68 Waterproof for Farming

Main Feature :
Serial No. : Lisa0857

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-RS6541 Factory Supply Soil Moisture and Temperature 2 in 1 Sensor 0-5V 0-10V 4-20mA Output Durable IP68 Waterproof for Farming

Product description

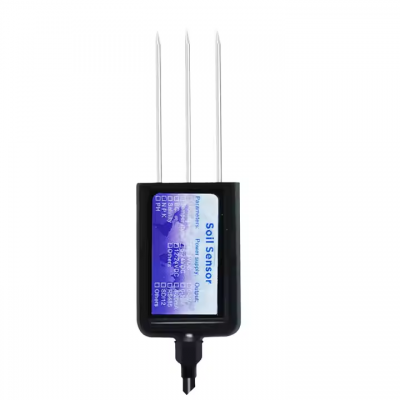

Product Name	Soil moisture and temperature sensor
Probe type	Probe electrode
Measurement parameters	Soil Temperature Moisture EC PH Salinity N,P,K
Soil moisture measure range	0 ~ 100%(V/V)
Soil temperature range	-40~80℃
Soil EC measure range	0~20000us/cm
Soil Salinity measure range	0~1000ppm
Soil NPK measure range	0~1999mg/kg
Soil PH measure range	3-9ph
Soil moisture accuracy	2% within 0-50%, 3% within 53-100%
Soil temperature accuracy	±0.5℃（25℃）
Soil EC accuracy	±3% in the range of 0-10000us/cm; ±5% in the range of 10000-20000us/cm
Soil salinity accuracy	±3% in the range of 0-5000ppm; ±5% in the range of 5000-10000ppm
Soil NPK accuracy	±2%FS
Soil PH accuracy	±0.3ph
Soil moisture resolution	0.1%
Soil temperature resolution	0.1℃
Soil EC resolution	10us/cm
Soil salinity resolution	1ppm
Soil NPK resolution	1 mg/kg(mg/L)
Soil PH resolution	0.1ph
Outputsignal	A:RS485 (standard Modbus-RTU protocol, device default address: 01)

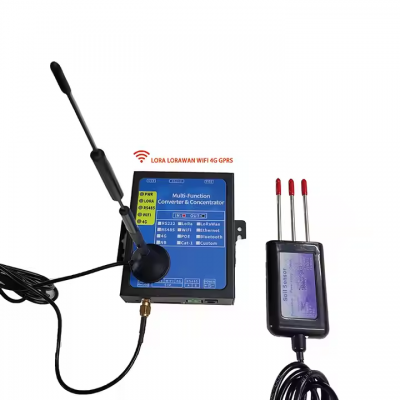

Output signal with wireless	A:LORA/LORAWAN
	B:GPRS
	C:WIFI
	D:4G

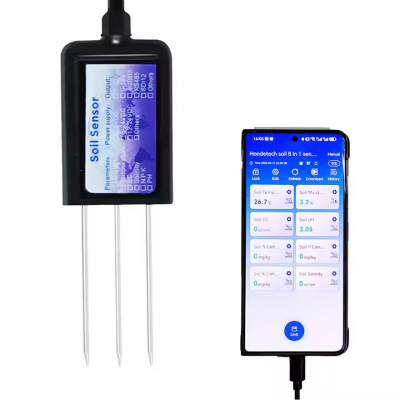

Cloud Server and software	Can supply the matched server and software to see real time data in PC or mobile
Supply voltage	5-30VDC
Supply voltage	5-30VDC
Working temperature range	-40 ° C ~ 80 ° C
Stabilization time	1 Minute after power on
Sealing material	ABS engineering plastic, epoxy resin
Waterproof grade	IP68

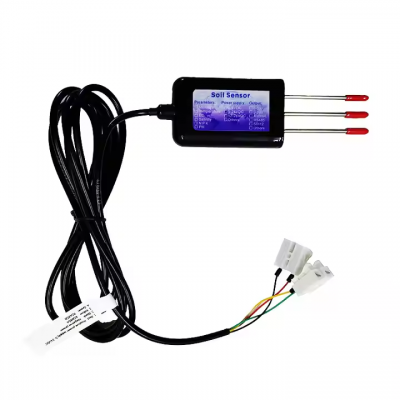

Cable specification	Standard 2 meters (can be customized for other cable lengths, upto 1200 meters)

Lable: RS6541 Waterproof for Farming
