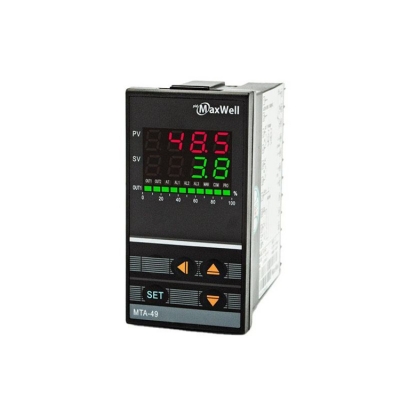

Testermeter-MTA-49/48/72/9648*96mm K Input Digital Temperature Controller XMTA XMTA Heat Press LED Display for Industrial Use OEM & ODM Supported
Features
| The entire series has passed CE certification (compliant with LVD 2014/35/EU and EMC 2014/30/EU directives) and is RoHS environmentally compliant. The MTBF (Mean Time Between Failures) of core components exceeds 100,000 hours. The product comes with an 18 - month warranty, supports on - site calibration and firmware upgrades. Its fan - less design and SMT process further reduce maintenance requirements, making it a cost - effective temperature control solution for equipment such as hot press molding machines and laminators. |
Product descriptions
| MTA- 1 - 2 - 3 - 4 - 5 - 6 (Basic model: MTA-48-R-1-96-NN) | ||
| Default Input: TC/RTD . (Please tell us if you require universal input .) | ||
| 1: Size | 48 | 48mm*48mm |
| 49 | 48mm*96mm(Vertical) | |
| 72 | 72mm*72mm | |
| 94 | 96mm*48mm(Horizontal) | |
| 96 | 96mm*96mm | |
| 2: output | R | Relay output |
| V | SSR Drive/Voltage pulse output | |
| D | 4-20mA output | |
| E | 0-10Vdc | |
| F | 0-20mA | |
| 3: Alarm | 1 | 1 Alarm |
| 2 | 2 Alarm | |
| 4::Power Source | 96 | 85-265VAC |
5:Process Value Re-transmission output | N | Without Re-transmission |
| P42 | PV Re-transmitted as 4-20mA | |
| P010 | PV Re-transmitted as 0-10Vdc | |
| 6:RS-485 Communication | N | Without Communicaiton |
| K | With Modbus RTU RS-485 communicatio | |
