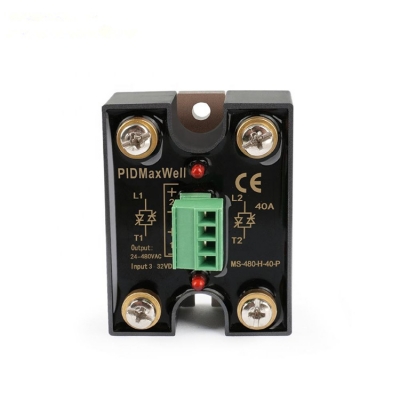

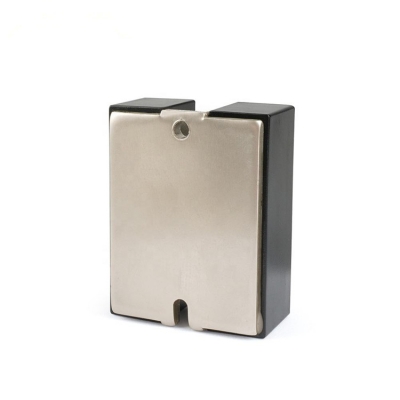

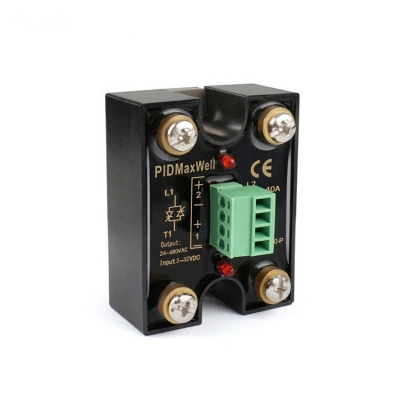

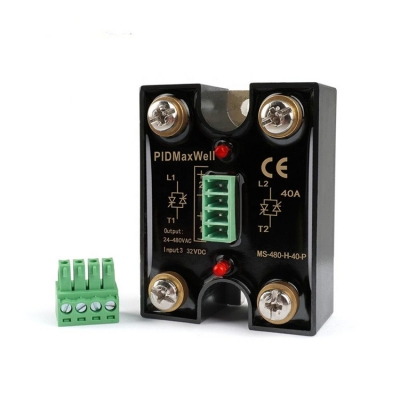

Testermeter-MS-480H-40-P-High Quality 40A Solid State Relay (SSR) Stable Two-Channel Dual Loop Design with 2 Input and 2 Output

  • Main Feature : Testermeter-MS-480H-40-P-High Quality 40A Solid State Relay (SSR) Stable Two-Channel Dual Loop Design with 2 Input and 2 Output
  • Serial No. : Owen0386
Contact Us For QuotationEmail:  464560351@qq.com  Whatsapp&Wechat:+8618620373879

Testermeter-MS-480H-40-P-High Quality 40A Solid State Relay (SSR) Stable Two-Channel Dual Loop Design with 2 Input and 2 Output

Features

High Current Capacity Design

The rated load current reaches 40A, which can directly drive high-power motors, heating equipment and other high-voltage loads, meeting the needs of industrial high-power consumption scenarios.

Using semiconductor materials with low internal resistance, the conduction voltage drop ≤ 1.2V, reducing energy consumption and heat generation, and suitable for long-term full-load operation.Dual-channel and Dual-loop Architecture

Independent Control Capability: The two channels (2 inputs / 2 outputs) can be connected to different control signals respectively, realizing parallel or redundant control of two independent loads, such as driving two production line devices simultaneously.

Redundant Protection Mechanism: The dual-loop design can automatically switch to the other channel when one of the channels fails, improving system reliability, especially suitable for critical fields such as medical and energy.

Specification

itemvalue
Place of OriginChina

Fujian
Brand NamePIDMAXWELL
Model Number
MS-480H-40-P
Mounting TypePanel amount
DescriptionTwo channels solid state relay
Applicationheating , lighting
TypeN
Output Type24-480VAC
Coil TypeDC to AC
CircuitN
Connector TypeN
Voltage - Output24-480VAC
Contact Rating (Current)40A
Voltage - Input3-32VDC
Switching VoltageN
Current - InputN
Contact FormN
Voltage - Load24-480VAC
On-State Resistance (Max)N
Current - Output40A
Termination StyleN
Load Current20A
Relay Typesolid state relay
Coil CurrentN
Coil VoltageN
SeriesN
FeaturesN
Manufacturing Date CodeN

图片关键词图片关键词图片关键词


Lable: MS-480H-40-P,High Quality 40A Solid State Relay (SSR), Stable Two-Channel Dual Loop Design with ,2 Input and 2 Output
