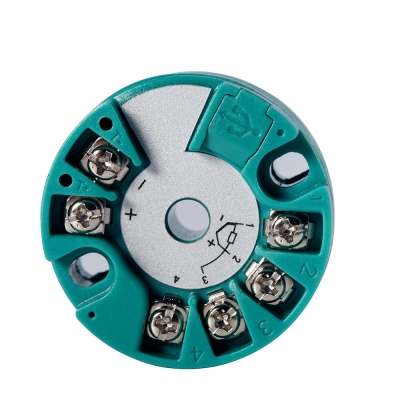

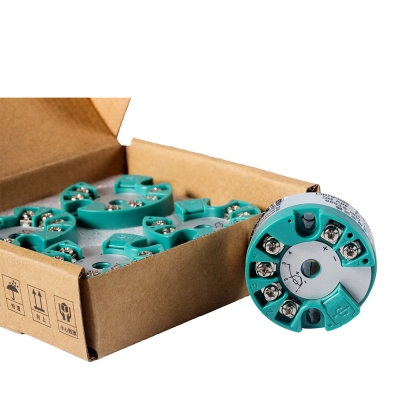

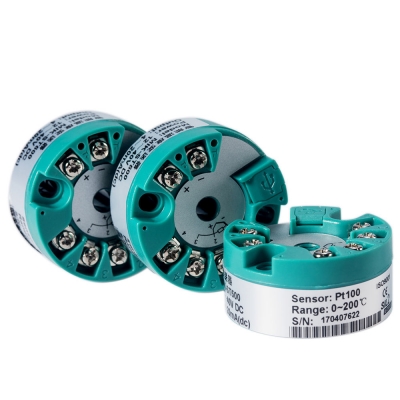

Testermeter-MIK-TR500 Temperature Transmitter Module With HART Protocol

Main Feature :
Serial No. : Lisa0680

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-MIK-TR500 Temperature Transmitter Module With HART Protocol

Features

Mode	Type	Measuring Range	Min Measuring Range
Thermal Resistance （RTD）	Pt100	-200℃~850℃	10℃
Thermal Resistance （RTD）	Cu50	-50℃~150℃	10℃
Thermocouple （TC）	B	400℃~1820℃	500℃
	E	-100℃~1000℃	50℃
	J	-100℃~1200℃	50℃
	K	-180℃~1372℃	50℃
	N	-180℃~1300℃	50℃
	R	-50℃~1760℃	500℃
	S	-50℃~1760℃	500℃
	T	-200℃~400℃	50℃

Key attributes

Warranty

12 months

Place of Origin

Guangzhou, China

Customized support

OEM

Brand Name

Xtester

Model Number

MIK-TR500

Power supply

12~40V

Input signal

Thermal resistance/Thermocouple/Resistance/Voltage

Output

4-20mA/1-5V(Customized)

Communication

HART Protocol

Response time

≤1s

Working temperature

-40°C~+85°C

Protection class

4g^2~150Hz

Circuit limits

≤22mA

OEM

Yes

Lable: Testermeter-MIK-TR500 Temperature Transmitter Module With HART Protocol
