Xtester-LS108H Desktop Spectrum Transmission Meter Visible Light 380nm-760nm Full Wavelength
LS108H Spectrum transmission meter Parameters
UV peak wavelength | 365nm |
IR peak wavelength | 940nm |
Visible light | 380nm-760nm full wavelength,in line with CIE photopic luminosity function |
Resolution | 0.1% |
Measurement accuracy | Better than ± 2% (colorless and uniform transparent materials) |
Minimum test sample size | 1mm |
Dimension | 170 mm ×180 mm ×144 mm (L*W*H) |
Weight | about 1570 g |
Power supply | 5V AC / DC power supply, or powered by mobile power |
1. Three light sources share a test hole, which can obtain 380nm-760nm visible light transmittance, 940nm infrared and 365nm ultraviolet transmittance in one measurement, easy to operate and save time. 2. Parallel light design, the measurement results of testing large thickness materials are also stable and accurate. 3. The test aperture is 1mm, which can test the transmittance of small-sized materials. 4. The light transmission meter has a real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after startup. 5. It is suitable for the transmission test of lens, paint, glass, mobile phone lens, organic material, etc. 6. Large LCD display, Chinese and English interface can be selected. 7. 5V power supply, convenient to connect with mobile power (charging treasure). LS108H Spectrum Transmission Meter Packaging Details |

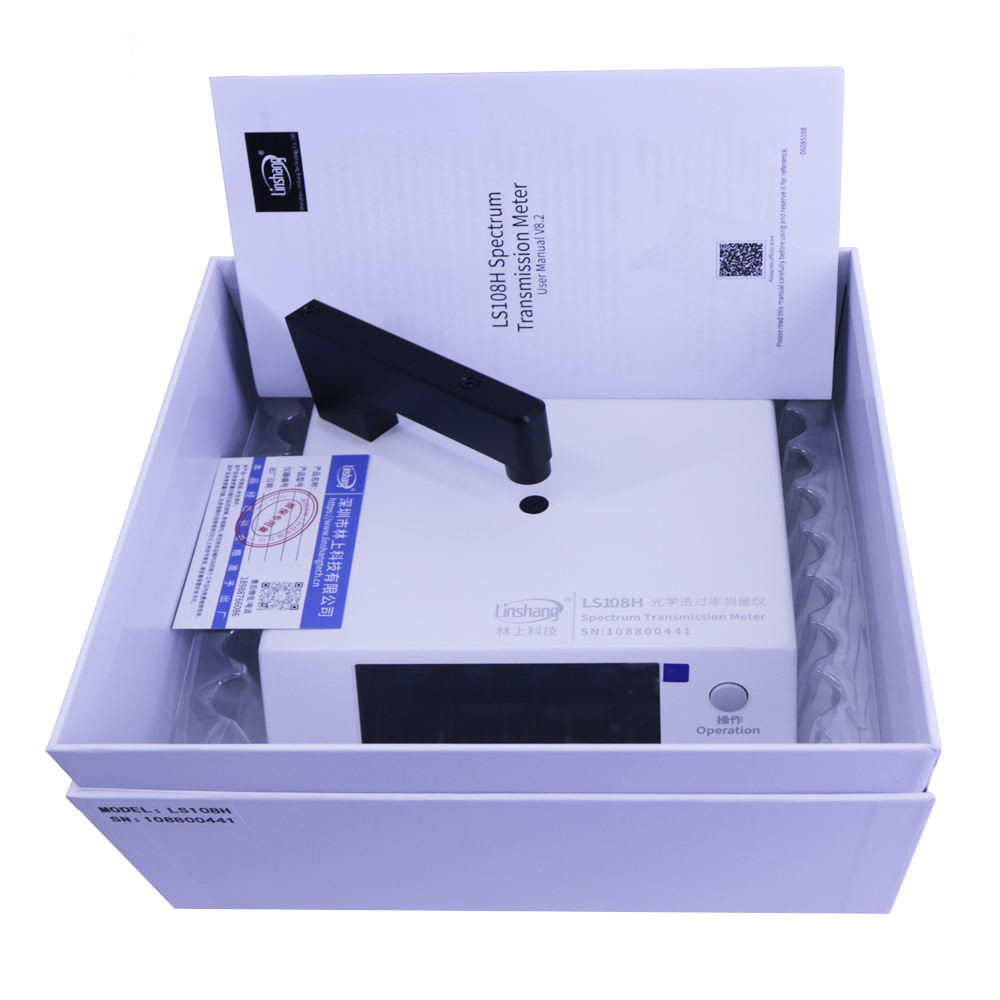

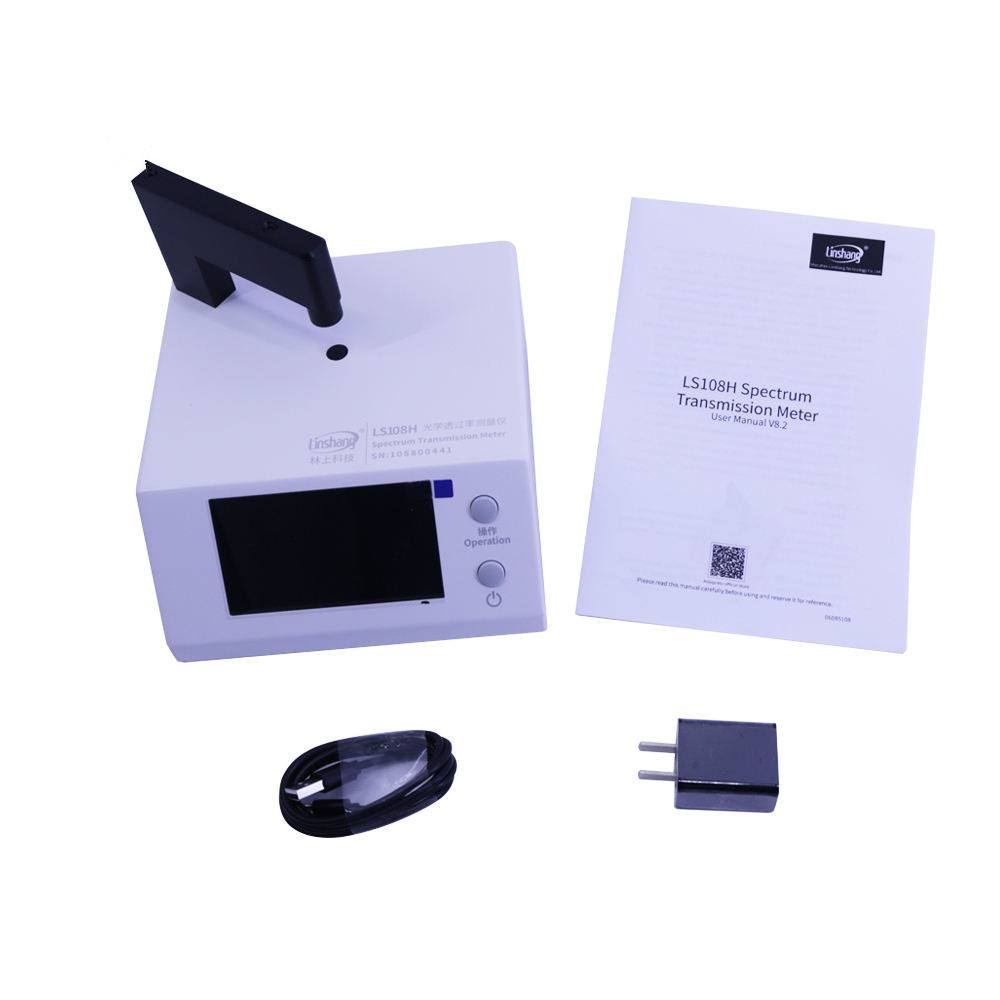

No. | Description | Quantity | Unit |
1 | LS108H Spectrum Transmission Meter | 1 | pcs |
2 | DC 5V Adapter | 1 | pcs |
3 | User Manual | 1 | pcs |
4 | Certificate / warranty card | 1 | pcs |

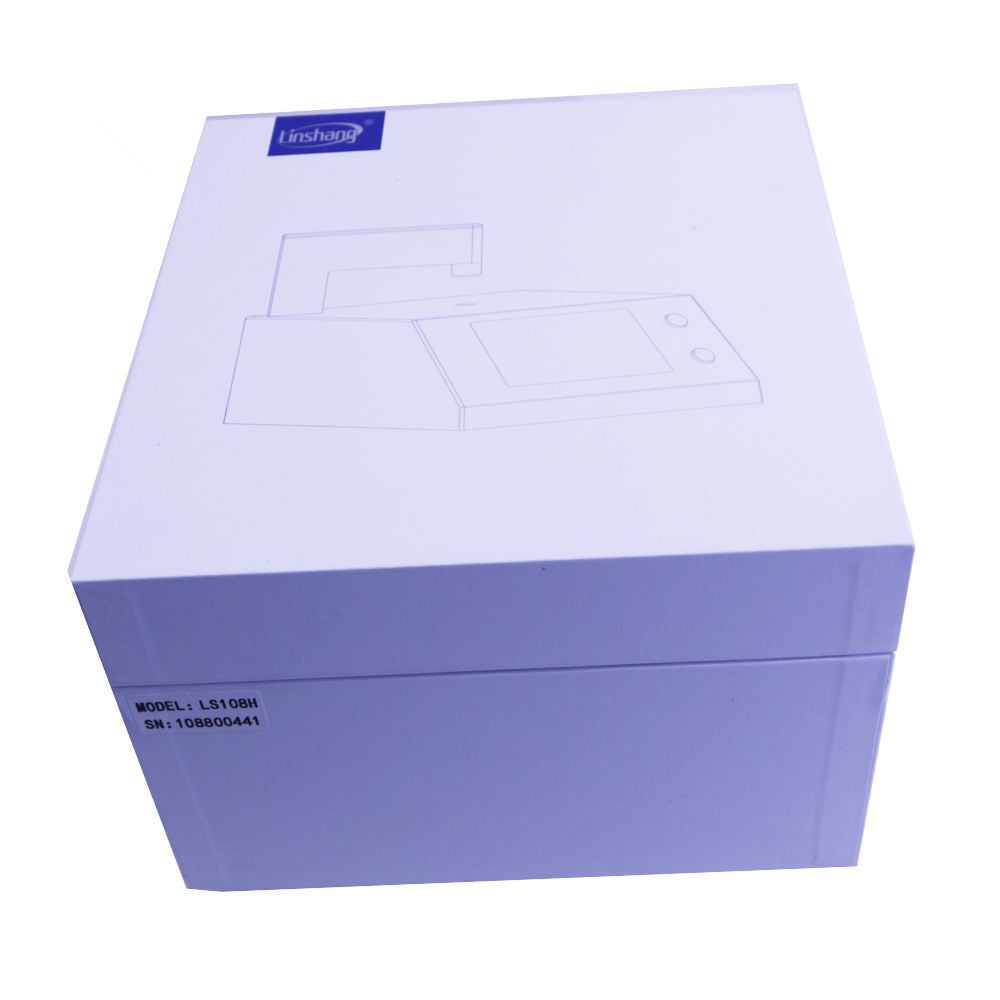

5 | Packing box dimension 231*241*161cm(L*W*H) | 1 | pcs |
