Testermeter-FST600-105 Water Temperature Sensor
Product overview
FST600-105 is a temperature sensor suitable for new energy vehicles (pure electric, hybrid) and traditional vehicles. It is used to measure water, ethylene glycol, coolant, antifreeze and other media. The through-hole is made of high-strength plastic material, which avoids the brittleness of traditional plastics and the heat loss caused by the through-hole made of metal, which causes inaccurate or distorted temperature detection. The sensing element uses high-precision electronic components, and the temperature detection sensitivity and accuracy are high. |
Features
◇ The protection level meets IP67 requirements; ◇ Easy installation, stable operation and reliable lifespan. |
Technical indicators
Type | NTC |
Output signal | Resistance |
Electrical interface | AMP (968405) |
R25 value | 2200Ω |
B value (25℃) | 3850 |
Accuracy (R25) | ±1% |
Ambient temperature | -40~120℃ |
Circulating medium | Water, ethylene glycol, coolant, antifreeze, etc. |
Protection level | IP67 |
Allowable pressure | Maximum 0.6MPa |

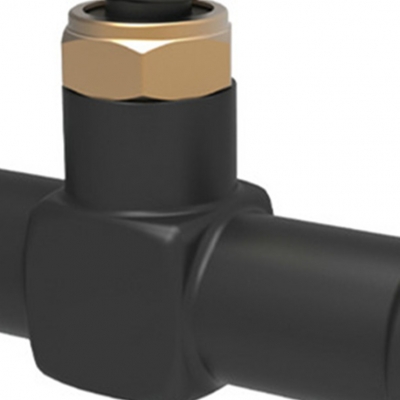

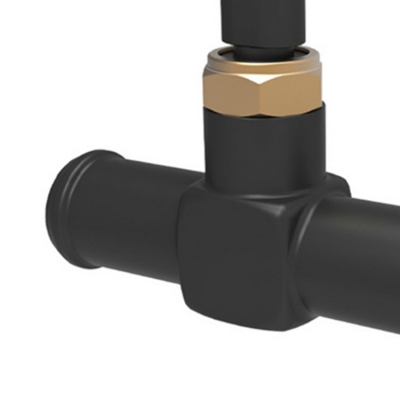

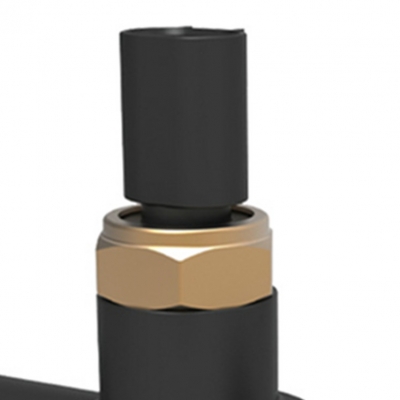

Appearance drawing
