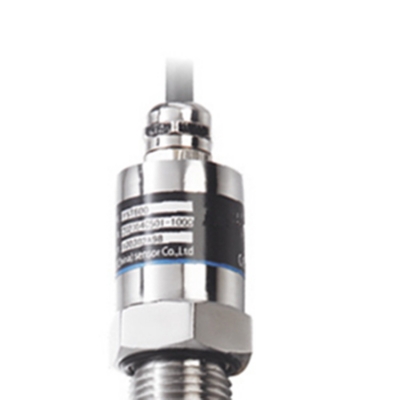

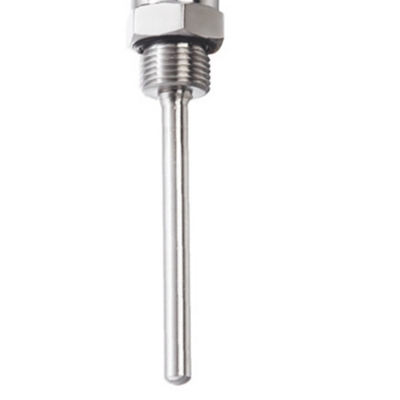

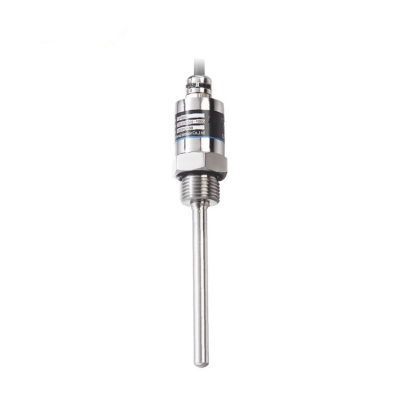

Testermeter-FST600-901 Digital Temperature Sensor

Main Feature : Testermeter-FST600-901 Digital Temperature Sensor
Serial No. : Owen0156

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-FST600-901 Digital Temperature Sensor

【Product Features】

● Multiple signals available; MODBUS (RS232/RS485)
● Can measure any medium compatible with 304/316L stainless steel
● Simple installation, multiple temperature ranges available
● Fast response, high accuracy
● Good long-term stability, low energy consumption, small size

【Application Scope】

● Pipeline and ventilation systems
● Cooling and heating systems
● Air conditioning systems
● Engineering machinery, industrial hydraulic equipment

【Technical parameters】

Temperature measurement range (℃)	-50~400℃ Can be customized Note: If the temperature exceeds 120℃, isolation is required
Installation method	Plug-in type, insertion depth (mm) 50, 80, 100 or can be customized according to user requirements
Signal output	RS485、RS232
Protocol	MODBUS RTU, see appendix for details
Supply voltage	9~30VDC, 3-5VDC (low power consumption)
Accuracy	±0.5%FS
Operating temperature	-40~+85℃
Storage temperature	-40~+125℃
Pressure resistant	Typical: 40bar (Max: 300bar)
Protection level	IP65

Lable: Testermeter-FST600-901 Digital Temperature Sensor
