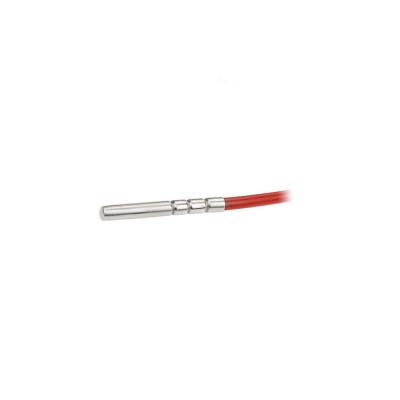

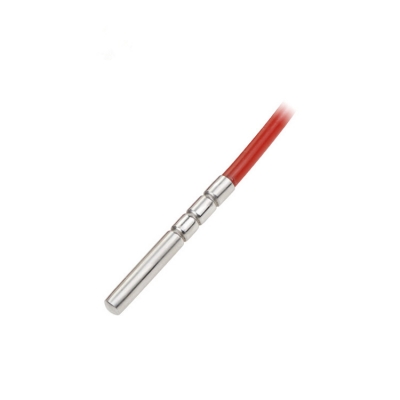

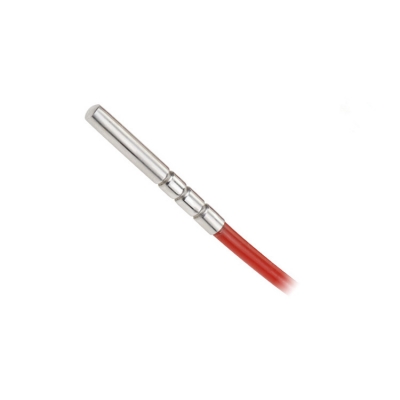

Testermeter-FST600-103 Platinum Resistance Temperature Sensor
【Product Features】
| ● Easy installation, multiple temperature measurement ranges available ● Gas and liquid dual-use, any medium compatible with 304/316L ● Fast response speed, low energy consumption, small size |
【Application Range】
| ● Applicable to hydraulic and pneumatic systems, air conditioning systems, automated temperature measurement and control systems |
【Technical parameters】
Range | -50~250℃ |
output signal | Resistance signal |
precision | A grade, B grade, 1/3B grade |
Signal Line Specifications | 2Wire，3Wire |
Working current | PT100：0.3~1mA PT1000：0.1~0.3mA （Self-heating effects need to be considered） |
Operating temperature | -40℃~+125℃ |
Storage temperature | -40℃~+125℃ |
long-term stability | ≤±0.1%FS/year |
Temperature measuring element | PT100、PT1000 |
Response time | T=50℃ 2.3s；T=90℃ 5.4s |
withstand voltage | typical（40bar） |
shell material | 304 stainless steel |
media compatibility | Various media compatible with 304 stainless steel |
Electrical connections | direct line |
Degree of protection | IP65 |
● Electrical interface and wiring method
