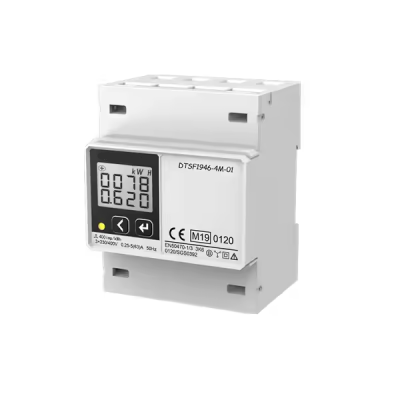

Testermeter-DTS1946-4M-01 EV Charger MID Billing Meter Single/three Phase -40~70 Energy Meter

Testermeter-DTS1946-4M-01 EV Charger MID Billing Meter Single/three Phase -40~70 Energy Meter

Testermeter-DTS1946-4M-01 EV Charger MID Billing Meter Single/three Phase -40~70 Energy Meter

Testermeter-DTS1946-4M-01 EV Charger MID Billing Meter Single/three Phase -40~70 Energy Meter

Testermeter-DTS1946-4M-01 EV Charger MID Billing Meter Single/three Phase -40~70 Energy Meter

2025-06-30 17:19:34

Testermeter-DTS1946-4M-01 EV Charger MID Billing Meter Single/three Phase -40~70 Energy Meter

Main Feature :
Serial No. : monica0690

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-DTS1946-4M-01 EV Charger MID Billing Meter Single/three Phase -40~70 Energy Meter

Technical Parameter

		DDS1946-1P DDSF1946-1P	DDS1946-2P DDSF1946-2P	DDS1946 DDSF1946	DSS1946 DSSF1946	DTS1946 DTSF1946
Normal Voltage		230V	230V	230V	3*400V	3*230/400V
Current	Direct input	5(40)A	5(100)A	5(100)A	5(100)A	5(100)A
	Via CT input	-	-	1.5(6)A	1.5(6)A	1.5(6)A
Accuracy		Class 1(Optional:Class 0.5S)
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct input	0.004Ib
	Via CT input	0.002In
Consumption		<2VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day
Communication		RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree		Front: IP51
Operating Temperature		-10℃ ~ 55℃
Storage Temperature		-25℃ ~ 70℃
Relative Humidity		≤93%
Certificate		CE ISO9001,MID

Lable: DTS1946 4M-01 EV Charger MID Billing Meter
