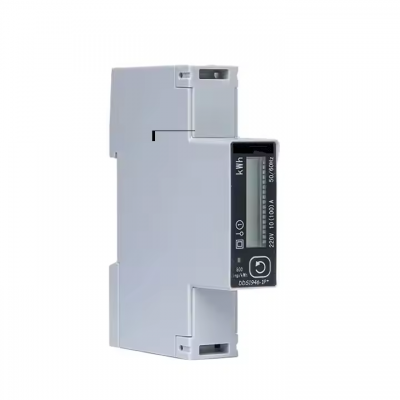

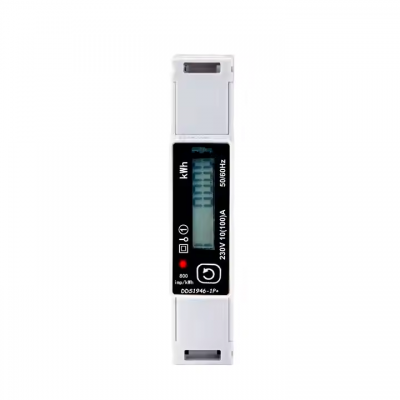

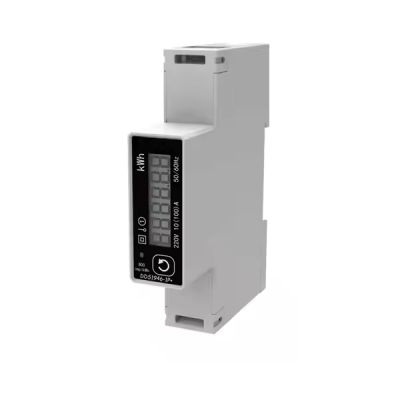

Testermeter-DDS1946-MID Single Phase Multi-Functional Miniature Din Rail Energy Meter

Main Feature :
Serial No. : monica0691

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-DDS1946-MID Single Phase Multi-Functional Miniature Din Rail Energy Meter

Product Introduction

The din rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital sampling processing technology and SMT process. The series of electric energy meters adopts a modular structure, which is convenient to install and reliable in operation.

Technical Parameter

Model		DDS/DSS/DTS1946 Series
Normal Voltage		230V, 3400V, 3230/400V
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct Input	0.004lb
Start Current	Via CT Input	0.01ln
Consumption		<4VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day
Communication		RS485, Modbus-RTU/MBUS protocol
IP Degree		Front: IP51
Operating Temperature		-25℃~55℃
Relative Humidity		≤93%

Lable: DDS1946 Multi-Functional Miniature Din Rail Energy Meter
