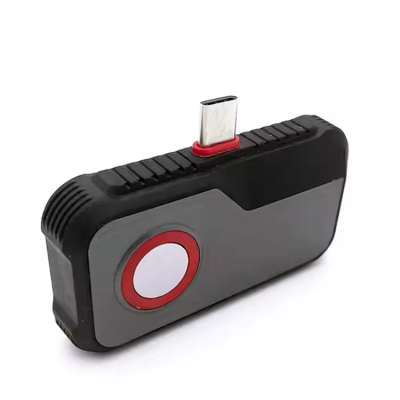

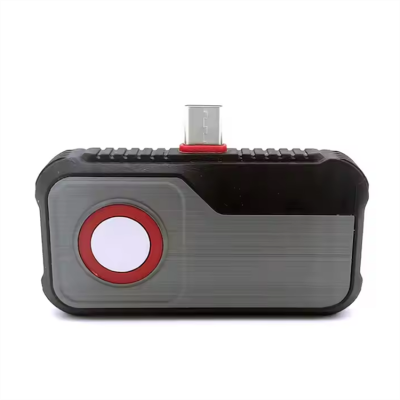

Testermeter-HT-203 Android Smartphone Use Thermographic Vision IR Red Imaging Heat Cell Phone Infrared Thermal Camera for Mobile

Main Feature :
Serial No. : monica0692

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-HT-203 Android Smartphone Use Thermographic Vision IR Red Imaging Heat Cell Phone Infrared Thermal Camera for Mobile

Feature

Product Paramenters

Model	HT-203U
Detector type	Amorphous silicon uncooled infrared focal plane
Thermal resolution	256x192
Pixel spacing	12μm
Focal length	3.5mm
Field angle	50.0°（H）x 37.2°（V）
IFOV	3.43mrad
Working band	8~14um
NETD	≤40mk@25°C,@F/1.2
Image frame rate	25Hz
Focusing mode	Free Focus
Brightness adjustment	Supported
Contrast adjustment	Supported
Color Palettes	white hot, black hot, blend, iron, dark brown, red hot, green hot, rainbow
Power consumption	≤0.36W
Temperature measurement mode	point, line and regional temperature measurement
Temperature measurement range	-20°C~550°C
Camera	Supported
External interface	USB Type-C，DC-5V
Working temperature	-20°C ~ +50℃
Storage temperature	-30°C ~ +70℃
Product size	46x70x14mm

Lable: HT-203 IR Red Imaging Heat Cell Phone
