CWDZ71C Anti-Corrosion Split Explosion-Proof Temperature Transmitter

  • Main Feature :
  • Serial No. : Zoe349
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter- CWDZ71C Anti-Corrosion Split Explosion-Proof Temperature Transmitter

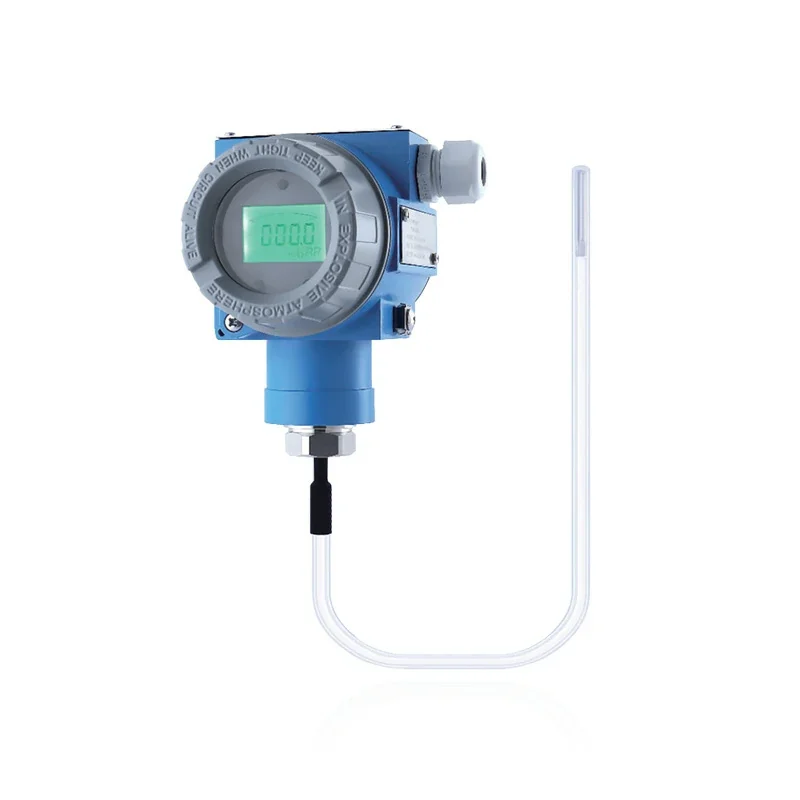

The CWDZ71C anti-corrosion split explosion-proof temperature transmitter is carefully designed and suitable for measuring the temperature of corrosive liquids and gases. With explosion-proof and HART protocol communication options, cost-effective.



Technical parameters

Range: -50~200, -200~100℃ Output: 4~20mA, 4~20mA HART, RS485, Pt100 (1/3B level) Power supply: 9~32VDC, 13~32VDC, 15~32VDC, 15~24VDC Accuracy: 0.25%FS, 0.5%FS



[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]



Typical applications

Chemical Monitoring Chemical and Petrochemical



Measuring medium

Liquid or gas (compatible with contact materials)



Technical parameters

Measuring medium

Liquid or gas (compatible with contact materials)

Measuring range

-50~200℃,-200~100℃

Measuring element

1*Pt100(1/3B grade)

Response time

18s (compliant with IEC60751, 0.4m/s wind speed, 10°C step)

Stable performance

±0.1%FS/year

Explosion-proof type

Intrinsically safe type Ex ia ⅡC T6 Ga (current output only)
Dust intrinsically safe type Ex ia IIIC T85℃ Da (current output only)
Note/Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply

Connection time

400ms

Protection level

Housing IP66 Probe IP68 Note/Protection level refers to the level achieved after electrical connections are complete.

Overall weight

With display ≈ 1.4kg Without display ≈ 1.25kg

Accuracy level

0.25%FS, 0.5%FS meter accuracy 0.05%FS (LCD with backlight)

Resolution

Analog output 0.02%FS, digital output 0.1℃

Load characteristics


Voltage Type

≥10kΩ

Current Type

No display load ≤ {(Us-7.5) ÷ 0.02} Ω
Display load ≤ {(Us-12) ÷ 0.02} Ω (Us = supply voltage)

HART Current Type

Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)

Environmental conditions


Ambient temperature

-40~85℃

Ambient humidity

0%~95%RH (no condensation and no condensation)

Electrical protection


Short circuit protection

permanent

Reverse polarity protection

No damage, but not working

Insulation resistance

≥100MΩ,500VDC

Dielectric strength

500VAC

Output Limitation


4-20mA

2.5mA~26mA

RS485

0~3500/7000

4-20mAHART

3.8mA~22mA

Overall material


shell

Die-cast aluminum

Display window

≈6mm explosion-proof glass

show

LCD display without backlight

Probe material


304 stainless steel seals

Nitrile rubber

Cables

PTFE shielded compensation cable (φ3.2mm)

Anti-corrosion protection pipe

FEP polyfluorinated ethylene propylene temperature resistance -200~200℃ (contacting the measured medium)

Mechanical stability


Vibration resistance

10g (20…2000Hz) in accordance with IEC60068-2-6 standard

Impact resistance

500g/ms in accordance with IEC60068-2-27 standard
