CWDZ71 Anti-Corrosion Split Temperature Transmitter

  • Main Feature :
  • Serial No. : Zoe350
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter- CWDZ71 Anti-Corrosion Split Temperature Transmitter

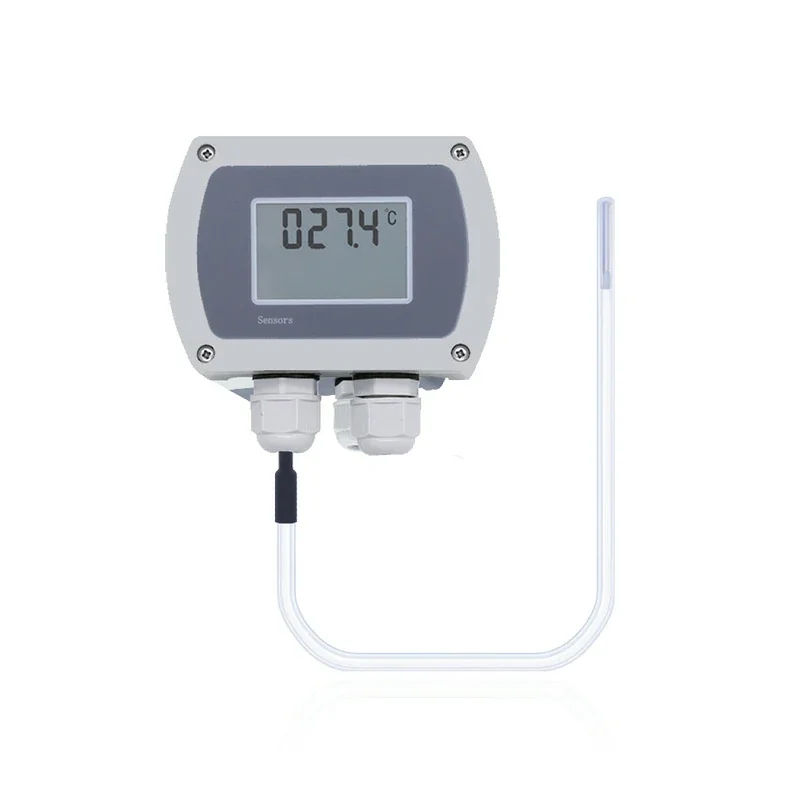

The CWDZ71 anti-corrosion split temperature transmitter is well-designed and suitable for measuring the temperature of corrosive liquids and gases, with and without display.



Technical parameters

Measuring range: -50~200°C, -200~100°C Output type: 4~20mA, RS485, Pt100, 0~10VDC, 0~5VDC, 1~5VDC Supply voltage: 9~36VDC, 12~36VDC Accuracy level: 0.25%FS, 0.5%FS



[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]



Typical applications

Suitable for general industry



Measuring medium

Liquid or gas (compatible with contact materials)



Technical parameters

Measuring medium

Liquid or gas (compatible with contact materials)

Measuring range

-50~200℃,-200~100℃

Output signal

4~20mA, RS485, Pt100, 0~10VDC, 0~5VDC, 1~5VDC

Measuring element

1*Pt100(1/3B grade)

Response time

18s (compliant with IEC60751, 0.4m/s wind speed, 10°C step)

Stable performance

±0.1%FS/year

Connection time

400ms

Protection level

Housing IP65 Probe IP68 Note/Protection level refers to the level achieved after electrical connections are complete.

Overall weight

With display ≈ 150g Without display ≈ 130g

Accuracy level

0.25%FS, 0.5%FS

Resolution

Analog output 0.02%FS, digital output 0.1℃

Load characteristics


Voltage Type

≥10kΩ

Current Type

Load ≤{(Us-7.5)÷0.02}Ω (Us=supply voltage)

Environmental conditions


Ambient temperature

-40~85℃

Ambient humidity

0%~95%RH (no condensation and no condensation)

Electrical protection


Short circuit protection

permanent

Reverse polarity protection

No damage, but not working

Insulation resistance

≥100MΩ,500VDC

Dielectric strength

500VAC

Output Limitation


4-20mA

4mA~20mA

RS485

0~1500

0~10VDC

0.001VDC~10VDC

0~5VDC

0.001VDC~5VDC

1~5VDC

0.001VDC~5VDC

Overall material


shell

ABS engineering plastics

Cable locking head

Nylon (locking wire diameter 4-6mm)

show

LCD display without backlight

Probe material

304 Stainless Steel

Seals

Nitrile rubber

Cables

PTFE shielded compensation cable (φ3.2mm)

Anti-corrosion protection pipe

FEP polyfluorinated ethylene propylene temperature resistance -200~200℃ (contacting the measured medium)

Mechanical stability


Vibration resistance

10g (20…2000Hz) in accordance with IEC60068-2-6 standard

Impact resistance

500g/ms, in compliance with IEC60068-2-27 standard
