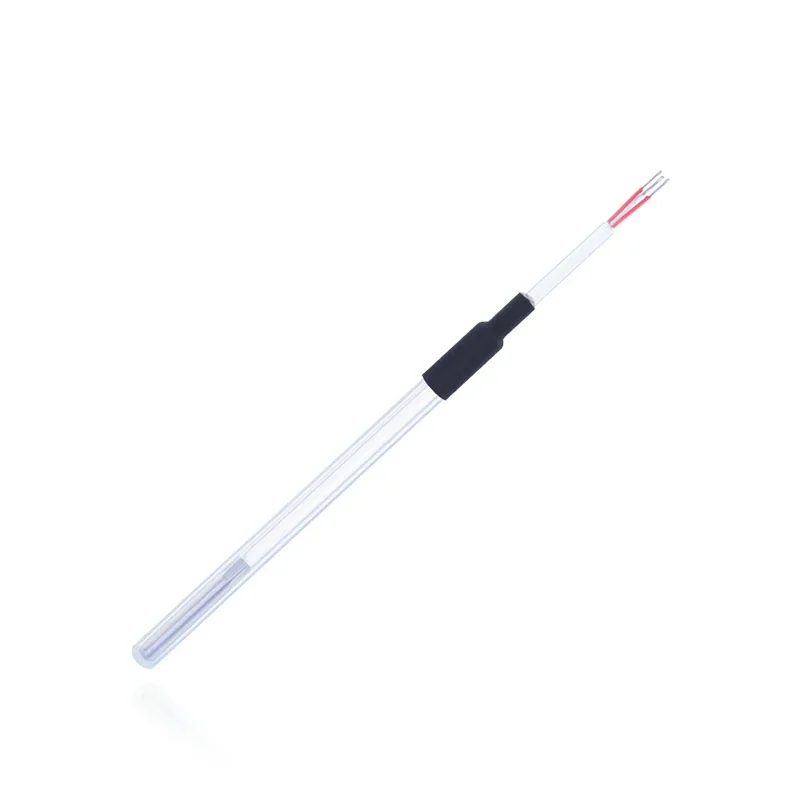

CWDZ70 Anti-Corrosion Platinum Resistance Temperature Sensor

  • Main Feature :
  • Serial No. : Zoe348
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter- CWDZ70 Anti-Corrosion Platinum Resistance Temperature Sensor



CWDZ70 anti-corrosion platinum resistance temperature sensor is suitable for measuring the temperature of corrosive liquids and gases.



Technical parameters

Measuring element: platinum resistance Pt100 (1/3B class) Measuring range: -50~200°C, -200~100°C Output: Pt100



[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]



Typical applications

Chemical Monitoring Chemical and Petrochemical



Measuring medium

Liquid or gas (compatible with contact materials)



Technical parameters

Measuring medium

Liquid or gas (compatible with contact materials)

Measuring range

-50~200°C, -200~100°C

Measuring element

1*Pt100(1/3B grade)

Response time

≤18s (compliant with IEC60751, 0.4m/s water flow, 10°C step)

Stable performance

±0.1%FS/year

Protection level

IP68

Insulation resistance

≥100MΩ,500VDC

Dielectric strength

500VAC

Overall material


Sensor housing

304 Stainless Steel

Connect the cables

XL06 PTFE shielded compensation cable (φ3.2mm)

Anti-corrosion protection pipe

FEP polyfluorinated ethylene propylene temperature resistance -200~200℃ (contacting the measured medium)

Mechanical stability


Vibration resistance

10g (20…2000Hz) in accordance with IEC60068-2-6 standard

Impact resistance

500g/ms, in compliance with IEC60068-2-27 standard
