INTRODUCTION

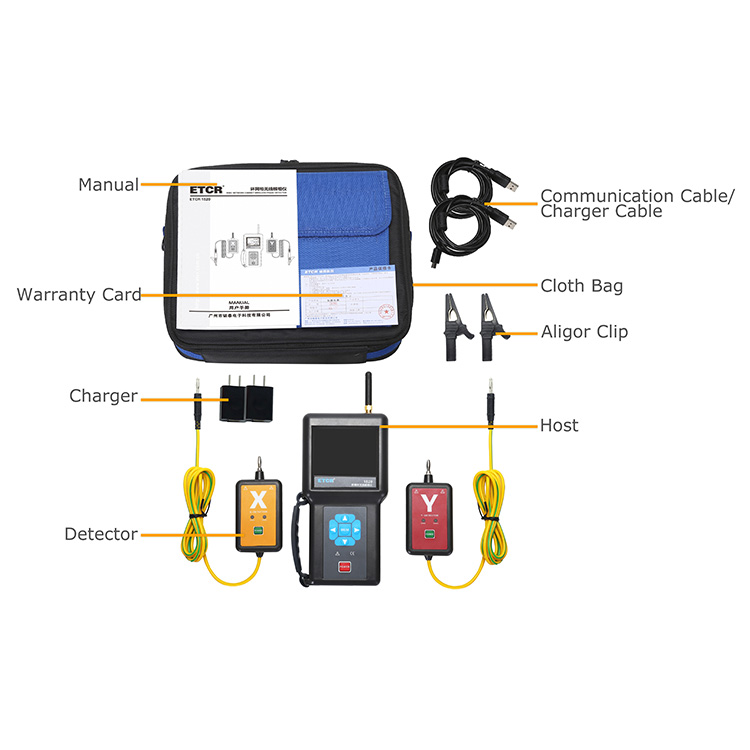

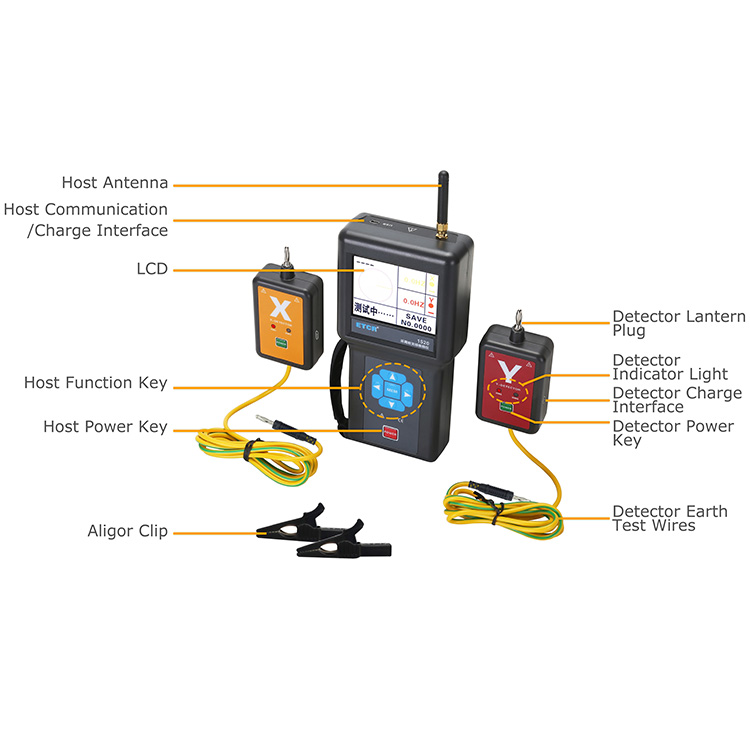

| TesterMeter-ETCR1520 Ring Main Unit Wireless Phase Phase Tester is specially designed and manufactured for high voltage ring main unit phase verification. The instrument has a voice prompt function, and the operation is particularly simple, safe and fast. The instrument can check the phase in the extremely low voltage line, the check-phase voltage is 1V～600V, and the check-phase distance is 30 meters. The nuclear phase meter also has the functions of testing phase, frequency and phase sequence. The instrument is composed of host, detector, monitoring software, USB communication line, etc. The host adopts a 3.5-inch true color LCD screen, which can display phase, frequency, phase sequence and nuclear phase results on the same screen; vector diagram indication, phase indication, clear and intuitive; It has voice prompt functions such as "X signal is normal, Y signal is normal, in-phase, out-of-phase", which makes the test simpler and easier. The monitoring software has the functions of online real-time monitoring, historical data query, vector diagram indication, and phase indication; it has functions such as reading, viewing, saving, and printing historical data. |
Main Features
1. Using wireless transmission technology, the nuclear phase distance is 30 meters, and the nuclear phase is accurate and convenient to operate. 2. Voice prompt: "X signal is normal, Y signal is normal, in-phase, out-of-phase". 3. The 3.5-inch LCD color screen can display the phase, frequency, phase sequence, and nuclear phase results on the same screen, and the dynamic vector diagram indication is clear and intuitive. 4. Data storage function, can store 200 sets of data. USB interface data upload function, the stored data can be uploaded to the computer, saved and printed. |
Technical specification
Function | Ring main unit nuclear phase and frequency, phase, phase sequence test |
power supply | Host: 3.7V, 2600mAh rechargeable lithium battery Detector: 3.7V, 600mAh rechargeable lithium battery |
Nuclear phase voltage | AC 1V～600V |
nuclear phase distance | 30m |
Differential characterization | In-phase: -20°～20°; Out-of-phase: 100°～140° and 220°～260° |
range | Test phase: 0°～360° |
Test frequency: 45.0Hz～65.0Hz | |
Accuracy | Phase: ≤±8° |
Frequency: ≤±2Hz | |
Resolution | Phase: 1° Frequency: 0.1Hz |
transmit frequency | 433MHz, 315MHz |
LCD size | 3.5-inch color screen; display area: 71mm×53mm |
Phase indication | Simultaneous display of vector graphics and numbers |
Display rate | 2 times/sec |
data storage | 200 groups (power failure will not lose data) |
Automatic shut-down | After about 15 minutes of power on, the meter will automatically shut down |
battery voltage | The host battery has a 4-grid power display. When there is only 1 grid or 0 grid, please charge it; when the indicator light of the detector flashes rapidly, it means that the battery voltage is low, please charge. |
Rated current | Detector: 30mA max; Host: 150mA max |
Instrument quality | Instrument: about 750g (including battery) |
Instrument size | Host 195mm×100mm×45mm; Detector 120mm×54mm×30mm |
Insulation test | Host and detector: AC3700V/rms (between exposed metal and plastic casing) |
outside interference | No strong electromagnetic field; no 433MHz, 315MHz co-channel interference |
Working temperature and humidity | -10℃～40℃; below 80%rh |
Storage temperature and humidity | -10℃～60℃; below 70%rh |
Protection class | IP63 |
Suitable for safety regulations | GB13398-92, GB311.1-311.6-8, 3DL408-91 standards and the newly promulgated national power industry standard "General technical conditions for 1kV ~ 35kV portable nuclear phase detectors for live work DL/T 971-2017" requirements |
Comply with IEC61481-A2; 2004; IEC 61243-1 ed.2:2003 standard |
Selection Guide
| Model | Product Name | Phase detection voltage | Phase detection distance | Satellite Phase Detection Distance |
TesterMeter-ETCR1500 | Wireless high voltage phase detector | AC 10V-500KV | 260m | / |
| TesterMeter-ETCR1500A | Remote wireless high voltage phase detector | AC 10V-500KV | 260m | 5000m |
| TesterMeter-ETCR1500B | Satellite timing remote wireless high voltage phase detector | AC 10V-500KV | 260m | 50KM |
| TesterMeter-ETCR1520 | Ring Main Unit Wireless Phase detector | AC 1V-600KV | 30m | / |
| TesterMeter-ETCR1540 | Metalclad withdraw switchgear wireless phase detector | AC 10KV-35KV | 20m | |
| TesterMeter-ETCR1560A | Multifunctional satellite remote wireless high voltage phase detector | AC 10V-500KV | 260m | 5000m |
| TesterMeter-ETCR1600 | Wireless high voltage phase detector | AC 200V-2200KV | 60m |
