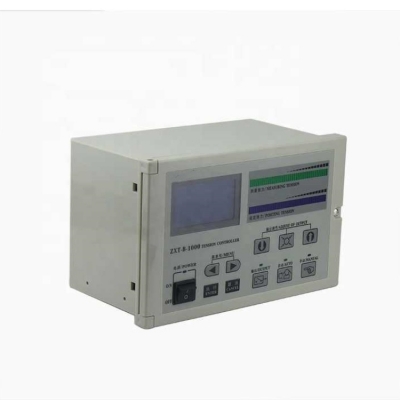

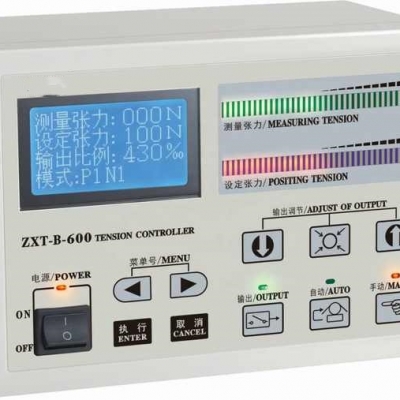

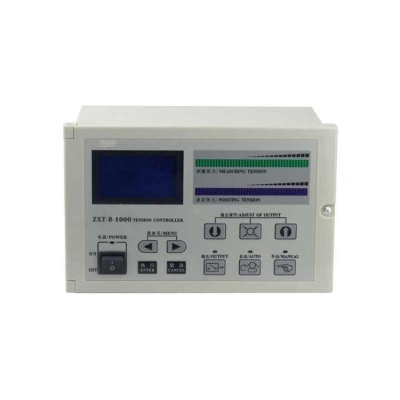

ZXT B 600 Automatic Constant Tension Controller Industrial Control Tension Full Digital High Precision Model
The controller is mainly composed of a tension detector, high-precision A/D and D/A converters, high-performance single-chip microcomputer (SCM), and other components. The automatic constant tension controller measures the tension of the coil through the tension detector, compares it with the target value set by the detector, and automatically adjusts the D/A output through SCM PID calculation to change the excitation current torque of the magnetic powder clutch, brake, or servo motor, thereby achieving constant tension control of the coil. It can be widely used in various occasions requiring precise tension measurement and control, featuring flexible use and broad applicability. |
Feature | Description |
LCD Display Language Selection | The LCD display supports two language options: Chinese or English. |
Automatic/Manual Mode Switching | Easy switching between automatic and manual modes. |
Tension Detector Wiring | Simple wiring for the tension detector. |
Parameter Setting Convenience | Convenient parameter setting. |
Duplex Output Shaft Compatibility | Compatible with duplex output shafts. |
Technical Parameters
Parameter | Description |
Measurement Accuracy | < ±1N |
Sampling Speed | 100MS |
Output Mode | DC 0-2A, adaptive load impedance 8-12Ω |
Auxiliary Output | DC 0-5V (maximum 10mA) analog signal output |
Overall Dimensions | 245 × 155 × 140 (mm) |
Installation Dimensions | 230 × 150 × 120 (mm) |
Power Supply | AC 180-245V, 50/60Hz |
