TesterMeter-HF10080-100V/80A Multi-Function Lithium Battery Capacity Tester
Click to download: TesterMeter-HF0080-100V80A Lithium Battery Capacity Tester
MAIN FEATURES
1. Test Battery Pack Capacity; |
| 2. Charge Battery pack; |
| 3. Discharge Battery pack |
| 4. Charge-discharge-charge automatic cycle |
| 5. Test Battery Power Charger current |
| 6. Test circuit board overcharge and over discharge parameters |
| 7. Built-in Power Supply 1-90V / 1-15A or 20A |
| 8. It can store 30 sets of recent test data in the equipment. |
| 9.Support battery types: Lead-acid battery, Lithium-iron battery, Ternary battery and Li-Polymer battery |
| 10.Accurate and constant current discharge from 1A-80A over the whole process (maximum of discharge current differs due to different models, so please refer to the machine nameplate for specific parameters ), and input voltage range: 2VDC~100VDC. |
| 11.Applicable battery pack: Single large monomer!12V!24V!36V!48!60V!72V!84V. |
| 12.Manage different battery by category, setting safe discharge voltage manually and automatically to effectively prevent battery over-discharge. |
| 13.Friendly human-machine interface with rich applications for charge and discharge management to flexibly set various charge and discharge parameters. |
| 14.Accurately record final voltage and capacity of charge and discharge to judge the capacity and quality of battery. |
| 15.Management of charge and discharge: manage the charge and discharge of battery via internal or external charger (different model configurations), such as displaying and recording charging current, voltage, time, charging capacity, etc. |
| 16.Display accuracy: +1%, display two decimal places of current and voltage for accurate and intuitive measurement. |
| 17.Reverse connection of battery input protection and over temperature protection. |
TECHNICAL PARAMETERS
Input voltage range: | 2VDC-100VDC |
| Voltage accuracy: | "0.5% ,two decimal places |
| Maximum discharge current: | 80A |
| Stepping regulation current: | 1A |
| Charging voltage: 1-90V, step: | 0.1V |
| If power supply is 220V the charging current: 1-20A, Step: | 0.1A |
| if power supply is 110V the charging current: 1-15A, Step: | 0.1A |
| Maximum charging current: | internal charger model - 20A, external charger model - 30A |
| Current accuracy: | +1%, two decimal places |
| Charging mode: | constant current discharge |
Final voltage of charge: | final voltage of charge being set; Automated: Minimum protection voltage of the battery pack-2V or low voltage protection of the battery pack |
Final voltage of discharge: | final voltage of discharge being set; Automated:<0.3A,the instrument stops charging |
| Capacity testing accuracy: | +0.05AH |

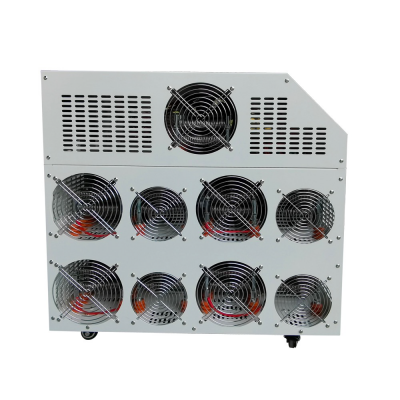

| Heat dissipation method: | double roller high-speed cooling fan |
| Equipment power supply: | AC220V |
| Appearance size: | 80A model: L*W*H: 603mm*428mm*609mm |
Packing Details
| Accessories included and Packaging information: | 1pcs Battery Capacity Tester 1pcs Power Supply Cable 2pcs Battery Connect Pliers Cable 1pcs User manual |
| Wooden packing | QTY: 1PCS/CTN G.W.: 71KG N.W.: 68KG MEAS: 73.5X56X68CM |
SELECTION GUIDE
| Model No. | Input Voltage Range | Maximum Discharge Current | Weight/Volume |
| 2VDC-100VDC | 20A | QTY: 1PCS/CTN G.W.: 25KG MEAS: 55X43X19CM |
| 2VDC-100VDC | 40A | QTY: 1PCS/CTN G.W.: 66KG MEAS: 70.5X54X49.5CM |
| 2VDC-100VDC | 60A | QTY: 1PCS/CTN G.W.: 68KG MEAS: 70.5X54X49.5CM |
| 2VDC-100VDC | 80A | QTY: 1PCS/CTN G.W.: 71KG MEAS: 73.5X56X68CM |
| 2VDC-100VDC | 100A | QTY: 1PCS/CTN G.W.: 71KG MEAS: 73.5X56X68CM |
