Testermeter- WB-19 wristwatch personal dosimeter
Introduction of instrument

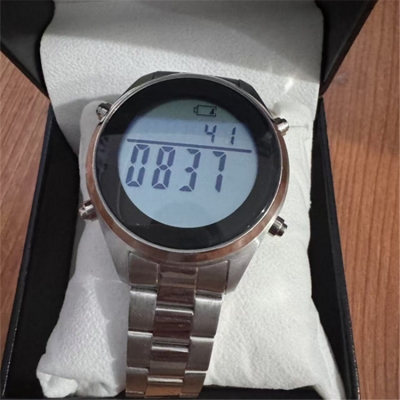

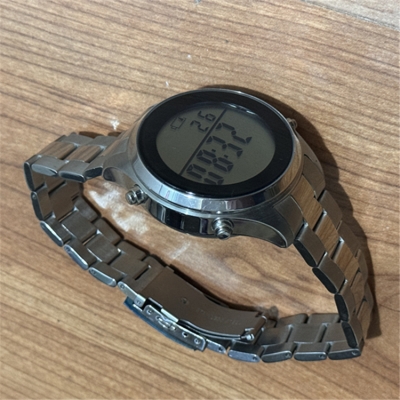

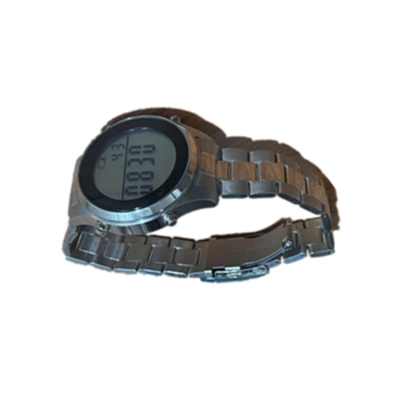

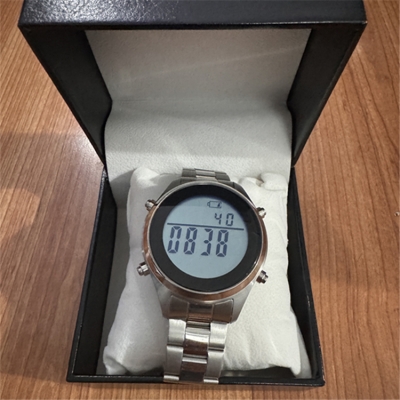

The wristwatch-type personal dosimeter is an X-ray and gamma-ray alarm instrument, which is mainly used to monitor the X-ray and gamma-ray exposure doses received by workers in radioactive places. The dosimeter is small and can be worn like a watch. This dosimeter can be used for radiation dose equivalent measurement in radioactive medicine, industrial non-destructive testing, radioisotope application, occupational disease prevention, military, nuclear power plants, and around radioactive workplaces. |
Features
1. Highly sensitive detector, strong anti-interference ability; 2. LCD large font display, data can be stored; 3. Easy to wear, simple to operate, with built-in waterproof function, can meet daily waterproof needs. |
Technical Parameters
Items | Parameter |
Detector | GM tube detector with energy compensation |
Measurement range | Dose equivalent rate: Hp(0.07) 0.10μSv/h-100mSv/h (customizable according to user requirements, maximum dose rate can reach 100Sv/h) |
Cumulative dose equivalent | Hp(0.07) 0.01μSv-9999 mSv |
Energy response range | 50 keV-1.3MeV |
Alarm function | There are alarm functions such as dose rate, cumulative dose, working time, etc., and the alarm threshold is continuously adjustable |
Environment Temperature | -10°C~+50°C; less than humidity: 95%RH (35°C) |
Data transmission | Magnetic charging head, the measurement data can be transmitted to the computer through the data cable |
Power consumption | The power consumption of the whole machine is less than 5mW |
Waterproof grade | IP67 |
Dimensions | diameter 45mm, thickness 20mm (without strap) |
Weight | <90g (without strap) |
