SW14232 SW Series Single-Axis Accelerometer

  • Main Feature :
  • Serial No. : Zoe768
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

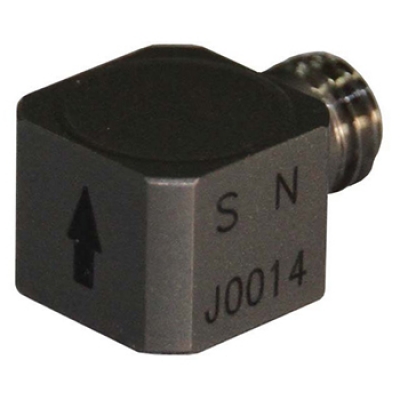

SW14232 SW Series Single-Axis Accelerometer



SW series accelerometers are traditional accelerometer based on piezoelectric ceramics technology, using imported ceramic sensing element, titanium shell and Microdot connector. Performance and appearance can be comparable with leading competitors’ products.

BSWA has a strict quality control system and each accelerometer has to pass environmental experiments with military standard before it leaves the factory, which lead to meet the needs of defense field or routine testing. Accelerometer cable is the most easily damaged parts and BSWA has enhanced the connectors and cables to improve the life of product.



Features:

• ICCP Power Supply Single Axis Accelerometer

• Small Size And Light Weight

• Imported Ceramic Sensing Element



Application:

• Routine Vibration Testing

• Automotive, Railway And Aerospace NVH

• Modal Analysis

• OPTA Testing



Specification

Value

Model

SW14232

Direction of Measurement

Single Axis

Sensitivity (±5%)

100mV/g

Measurement Range

±50g peak

Frequency Response (±5%)

1.0Hz ~ 10kHz

Frequency Response (±10%)

0.5Hz ~ 12kHz

Resonant Frequency

38kHz

Broadband Resolution

0.0001g rms

Non - Linearity

-

Transverse Sensitivity

-

Maximum Shock Level

±400g peak

Overload Limit (Shock)

±1000g peak

Operating Temperature

-50°C ~ 120°C

Base Strain Sensitivity

0.0008g/με

Excitation Voltage

18VDC ~ 30VDC

Constant Current Excitation

2mA ~ 20mA

Output Impedance

≤100Ω

Output Bias Voltage

9VDC ~ 11VDC

Spectral Noise (10Hz)

12μg/√Hz

Spectral Noise (100Hz)

4μg/√Hz

Spectral Noise (1kHz)

3μg/√Hz
