ISO 1167 Plastic Pipe Hydrostatic Pressure Burst Tester/PVC PE Pipe Pressure Burst Testing Machine

  • Main Feature :
  • Serial No. : Zoe158
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter-ISO 1167 Plastic Pipe Hydrostatic Pressure Burst Tester/PVC PE Pipe Pressure Burst Testing Machine

Standards:

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108,  ASTMF1335.

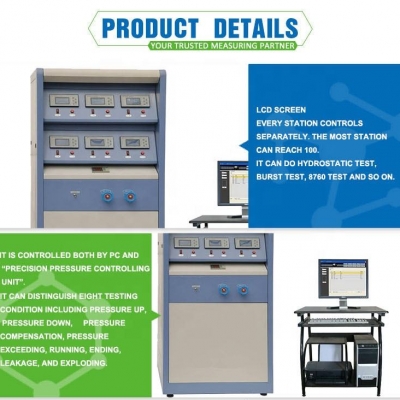

Mainframe

1.It is controlled both by PC and “Precision Pressure Controlling Unit”.

2.It has LCD screen.

3.Every station controls separately. The most station can reach 100.

4.It can do hydrostatic test, burst test, 8760 test and so on.

5.The pressure can be from 3 to 100MPa.

6.It can distinguish eight testing condition including pressure up, pressure down,     pressure compensation, pressure exceeding, running, ending, leakage, and exploding. And also it can judge both effective and ineffective time parameters automatically. (The effective time means the time of the pressure within the setting pressure.)

Technical Specification:

Size of pipe

DIA.2~2000

Station/Channel

3

Controlling

PC Control & Precision Controlling Unit

Display

Colorful & LCD

Saving

PC Saving

Printing

Colorful

Test pressure

Scope

0-10MPa

Pressure Accuracy

±1

Display Resolution

0.001MPa

Working Pressure

5%~100%FS

Error

±1

Timing

Scope

0~10000h

Timing Accuracy

±0.1%

Timing Resolution

1s

Power

380V 50Hz  1KW

Size

750×800×1500(mm) or Others
