Testermeter-AVT-501-Lab Portable Small Mini Digital Orbital Vortex Mixer

Testermeter-AVT-501-Lab Portable Small Mini Digital Orbital Vortex Mixer

2025-08-22 15:57:04

Testermeter-AVT-501-Lab Portable Small Mini Digital Orbital Vortex Mixer

Main Feature : Testermeter-AVT-501-Lab Portable Small Mini Digital Orbital Vortex Mixer
Serial No. : Owen0357

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-AVT-501-Lab Portable Small Mini Digital Orbital Vortex Mixer

Features

This product has become an ideal tool for rapid mixing in laboratories through three core advantages of portability, digital control, and efficient mixing. Its features can be summarized as: compact in size yet comprehensive in functions, simple to operate yet high in precision, which is especially suitable for scenarios that require frequent movement, small - batch sample processing, or have limited budgets. When purchasing, it is recommended to select a suitable model according to experimental requirements (such as container type, mixing intensity), and pay attention to details such as anti - slip design and power supply flexibility to enhance the user experience.

Product Description

图片关键词

Accessories

图片关键词

Tube Holding Rod

图片关键词

Top plate

图片关键词

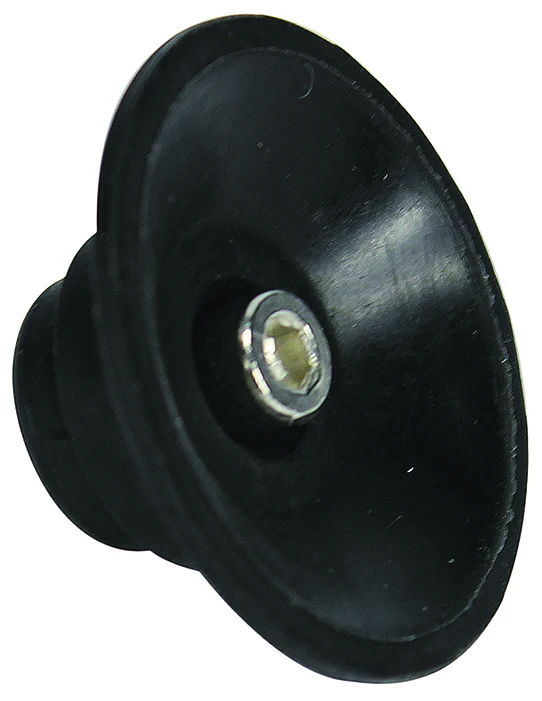

Vacuum Chuck

图片关键词

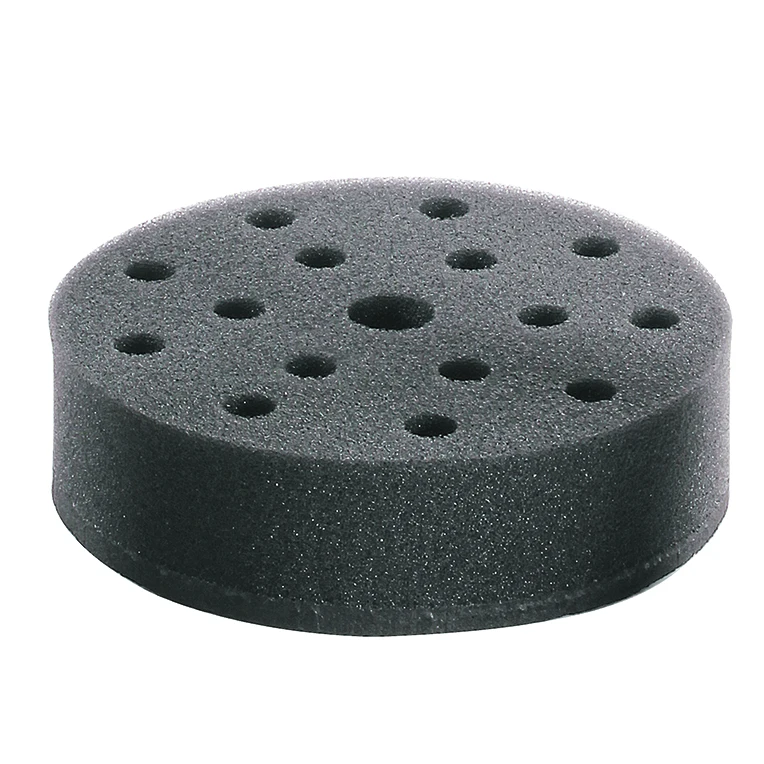

Adaptor

图片关键词

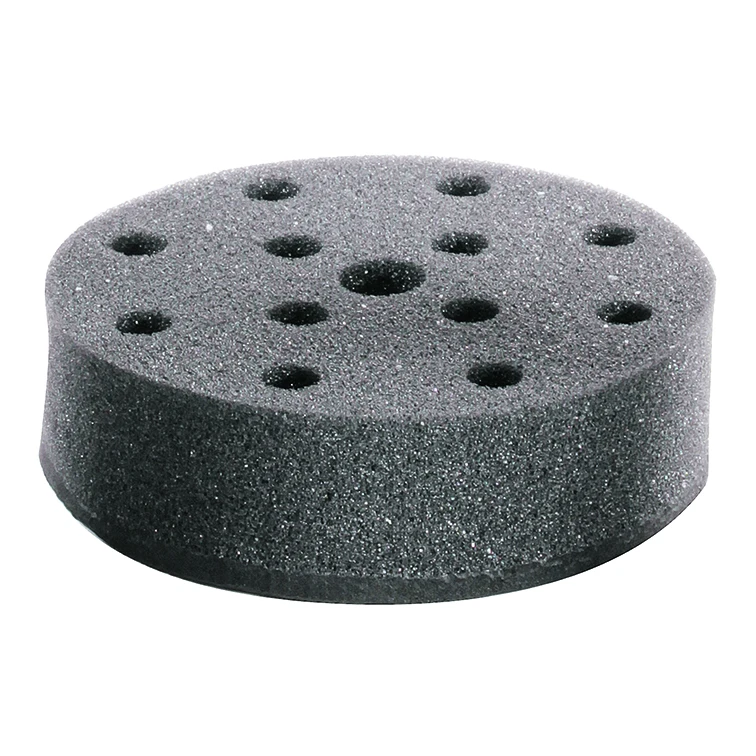

Adaptor

图片关键词

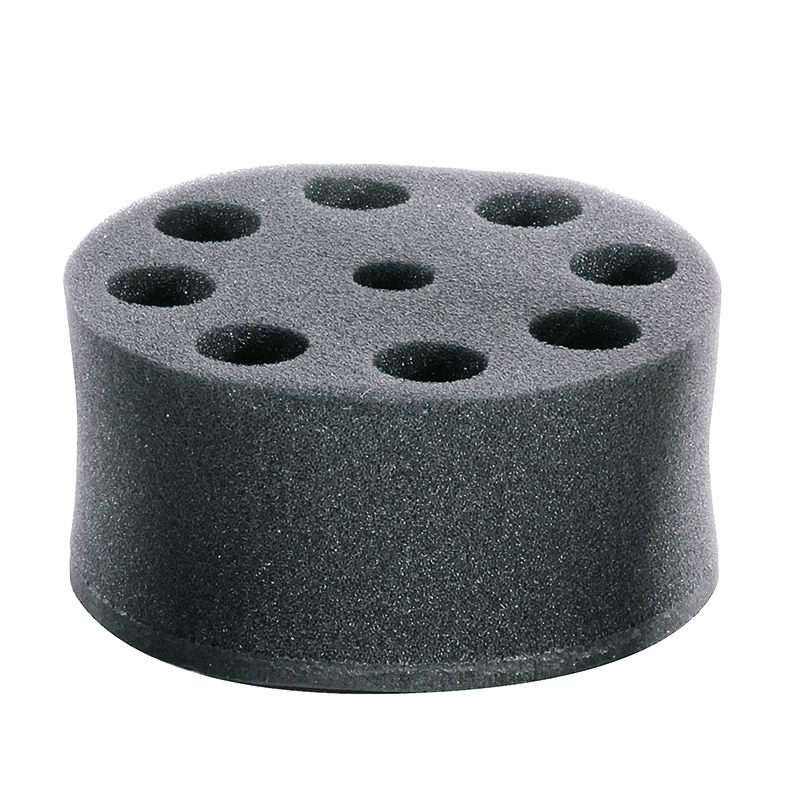

Adaptor

图片关键词

Adaptor

图片关键词

Adaptor

图片关键词

Plateform pad

AVT-501

Speed adjustable from 0-3200rpm

AVT-502

Fixed speed of 3200rpm

Technical Specifications:

Specifications	AVT-501	AVT-502
Voltage	110-120V/220-230V,50/60Hz
Power	60W
Mixing motion	Orbital
Orbital diameter	4mm
Motor type	Shaded pole motor
Motor rating input	58W
Motor rating output	10W
Speed range	0-3200rpm	3200rpm
Speed display	Scale	---
Run type	Touch operation/Continuous
Dimension[W×H×D]	127×130×160mm
Weight	3.5kg
Permissible ambient temperature	5-40 °C
Permissible relative humidity	80%RH
Protection class	IP21

Lable: AVT-501-Lab, Portable Small Mini ,Digital Orbital Vortex Mixer
