SHIMPO TNP-5 Digital Torque Meter, 0 to 44.25 lbin
Measures OPEN and CLOSE torque values for various applications, and in particular, as a cap torque analyzer, it determines bottle closure and breakaway torque. Capable of storing 1000 data points, including average, maximum, and minimum values, and features a measuring range of 0 to 44.25 lbin.
SHIMPO TNP-5 Offers

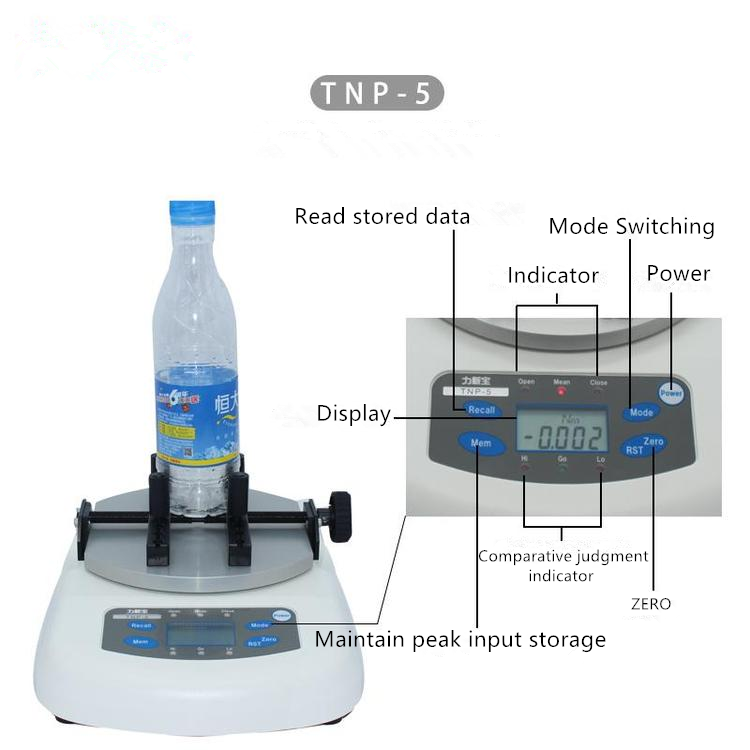

As a cap torque analyzer, it repeatedly determines bottle closure and breakaway torque. Its wide memory capacity is capable of storing 1000 data points, including Average, Maximum, and Minimum values. A HI-GO-LO LED comparator feature can be utilized for large batch testing to ensure overall product quality. It is a portable device powered with internal rechargeable batteries or through a universal AC adapter/charger.
Designed with a small footprint, it can easily be transferred between the shop floor and laboratory, taking up little space when operating. Comes standard with USB connection and cable for easy PC/Software interface. Combined with the free "Digitorq" Software, statistical testing, graphing, and analysis can be performed.
Features
· Precise ±0.5% F.S. accuracy ensures exact results
· Quick and easy set up with removable chuck pins that adjust test diameter size
· Memory function allows convenient storage of up to 1000 readings for later retrieval
· One touch operation enables quick reset for subsequent tests
· Large, easy to read LCD displays torque values in four selectable engineering units
· PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft® Excel
· Truly portable with compact, light-weight design and internal, rechargeable batteries
· Recharge batteries with included 120/240 V AC adapter/charger or utilize adapter for continuous use
· Selectable measuring modes enables capture of Average, Peak Opening or Peak Closing values in either clock-wise (CW) or counter clock-wise (CCW) directions
· Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances
· Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear
Applications
· Medical
· Pharmaceutical
· Industrial quality control
· R&D
SHIMPO TNP-5 Specifications
Measuring Range | 0 to 5.00 Nm, 0 to 500.0 Ncm, 0 to 50.99 kgcm, 0 to 44.25 lbin |
Test Sample Diameter Range | 0.39 to 7.48" (10 to 190 mm) |
Accuracy | ±0.5%/F.S. |
Display | Main display: 4-digit LCD display, character height 0.5" (12 mm) |
Comparator Display | HI - GO - LO (green and red LED indicator) |
Display Update Time | Select from 0.125 second (8 times/second), 0.25 second (4 times/second), 0.5 second (2 times/second), 1 second (1 time/second). Peak display: 0.125 second |
Measuring Mode | Opening Mode: Show max value when opening (peak display) Displays max counterclockwise torque |
Overload | 150% of full scale |
Sampling Rate | 1000 Hz |
Memory | 1000 data (max) |
Data Output | USB1.1 |
PC Software | Digitorq software |
Power | Built in nickel hydride battery (NiMH) or Auto-ranging AC adapter (AC 100 - 240 V) |
Battery | NiMH: 8 hours use after full charge. 16 hour maximum recharge time |
Operating Environment | 32 to 104°F (0 to 40°C) |
Dimensions | 12.60 x 8.94 x 4.96" (320 x 227x 126 mm) |
Weight | Approximately 17.6 lbs (8 kg) |
What's included with the SHIMPO TNP-5
· Torque Meter
· Chuck Pins
· USB Cable
· 120/240 VAC AC Adapter
