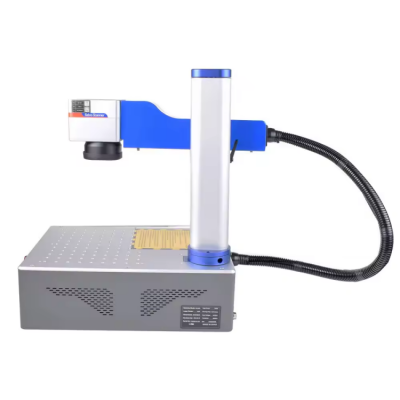

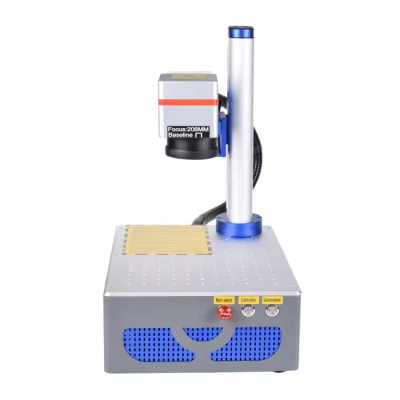

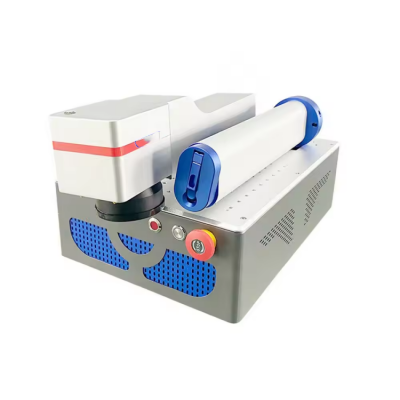

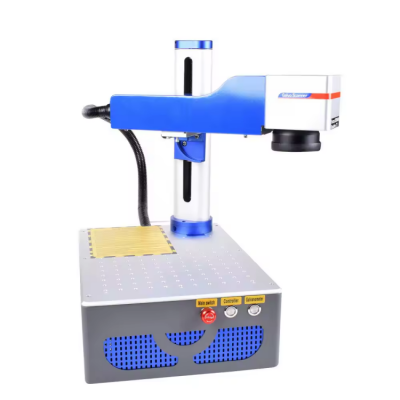

Raycus 30w Fiber Laser Marking Machine Laser Engraving Machine 175175mm Metal Steel Marking Foldable
Parameter | Specification |
Application | Laser Marking |
Laser Power | 30W |
Fiber Laser Module Brand | Raycus Laser Source |
Lift Span of Fiber Laser Module | 100,000 hours |
Beam Quality | M2 < 1.5 |
Marking Line Speed | ≤ 7000 mm/s |
Minimum Line Width | 0.012 mm |
Minimum Character | 0.15 mm / depending on material |
Marking Depth | ≤ 1.2 mm / depending on material |
Repeat Accuracy | ± 0.003 mm |
Focal Spot Diameter | < 0.01 mm |
Laser Output Power | 10% - 100% continuous adjustment |
Laser Wavelength | 1064 nm |
Power Supply | AC 220V / 50Hz |
Temperature / Humidity | 15℃ ~ 35℃ / 10% ~ 95% |
Power Consumption | ≤ 400W |
Operating System | Win XP / Win7 / Win8 / Win10 |
Marking Format | Graphics, AI, Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, Barcode, QR Code, etc. |
Laser Type | Fiber Laser |
Condition | New |
Cooling System | Built-in Air Cooling |
Communication | Standard USB2.0 |
Control Software | Ezcad (easy to use) |
Origin | China |
Certification | CE, ISO |
Laser Source Brand | Maxphotonics |
Control System Brand | BJJCZ (original version) |
Gross Weight (KG) | 30 kg |
Net Weight (KG) | 25 kg |
Packaging | Wooden Case |
Main Selling Points | Easy to Operate |
Rotating Axis | Optional |
After-Sales Service | Video Technical Support, Online Support for Spare Parts |
Marking Area | 175 mm * 175 mm |
Mechanical Test Report | Provided |
Video Output - Inspection | Provided |
Core Components Warranty | 3 years |
Note | The above parameters are laboratory test results, and actual operation shall prevail. |
