NEJE 3 MAX V2 E80 Laser Cutting Machine Metal 130W 790470mm Acrylic Wood Laser Cutter Laser Engraving Machine

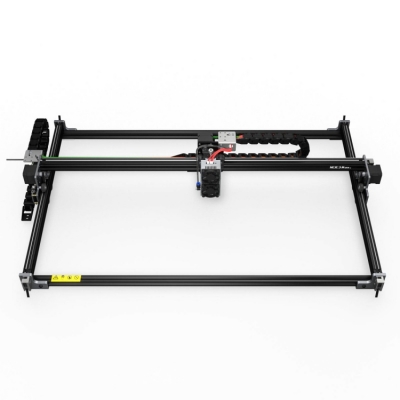

NEJE 3Max-V2 is a versatile large-area DIY laser engraving and cutting machine, featuring simple assembly, stable performance, and easy maintenance. It is the fourth-generation improved model based on NEJE 2 Max, NEJE 2s Max, and NEJE 3 Max. By optimizing alloy material matching and structural design, it enhances structural strength, smoothness, and precision, and undergoes comprehensive calibration using precision CNC machine tools. While ensuring portability and ease of use, it perfectly meets the needs of both beginners and commercial users.
NEJE 3Max-V2 is highly portable, allowing you to easily pick it up with one hand and complete your projects outdoors. It can also be easily mounted on the wall when not in use.
The new control system supports the machine's Z-axis and A-axis. One computer can control numerous devices, and it supports commercial production mode settings and LightBurn wireless mode.

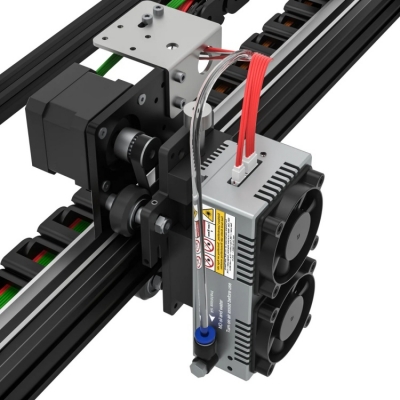

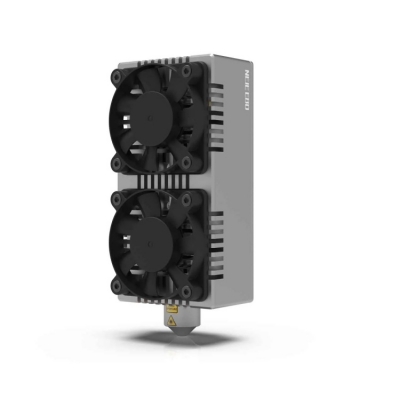

It is also equipped with the NEJE H20 optical precision module focus adjuster, which is compatible with larger power modules such as E80, offering stability, ease of use, and high efficiency. If you want to modify the machine, you can update the firmware and upgrade it to an electric Z-axis to enhance the performance of 3Max-V2 in multi-dimensional space. Alternatively, you can expand the X-axis and Y-axis to achieve an incredible working area. The brand-new NEJE 3Max-V2 is an excellent helper for entry-level and commercial use. |
Specifications
Frame Size (L-W-H) | 970x582x60mm |
Working Area (x-y) | 790 x 470mm, supports extension to 790x1030mm |
X-axis | Industrial linear guide rail, with bottom CNC linear correction |
Y-axis | NEJE diamond CNC linear guide rail, smooth and durable |
Z-axis | Industrial linear guide rail |
Axis | Rotary axis extension (However, the extension requires additional purchase. If you need it, please contact us before purchasing the machine) |
Y-axis extension: | Yes, NEJE will provide linear extension rails, and the Y-axis can be extended to 1030mm. (However, the extension requires additional purchase. If you need it, please contact us before purchasing the machine) |
Limit switches | Built-in X, Y, Z |
Homing repeat position accuracy | 0.01mm |
Repeat position accuracy | X, Y: 0.01mm; Z: 0.001mm |
Recommended acceleration and maximum speed | 400mm/s |
Vertical engraving | Yes (90°) |
Input voltage: | 12V or 24V, matched according to the module voltage |
Interface | 5.5*2.1, maximum 6A |
Compatibility | All 12V and 24V NEJE modules |
Lightburn offline control | Yes |
Lasergrbl offline control | Yes |
BLE Bluetooth function | Supports Bluetooth 4, Windows 10, iOS 8 and Android 4.2 and above. |
Application control | Yes |
MEMS protection | Yes |
NEJE software OTA upgrade | Yes |
Software | NEJE Win Soft, NEJE APP, Lightburn, LaserGRBL |
Firmware | Built-in NEJE firmware and GRBL 1.1f (optimized) |
System support | Windows 7/Windows 8/Windows 10, Android, iOS, iPadOS, macOS |
Supported file formats | GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/, etc. |
