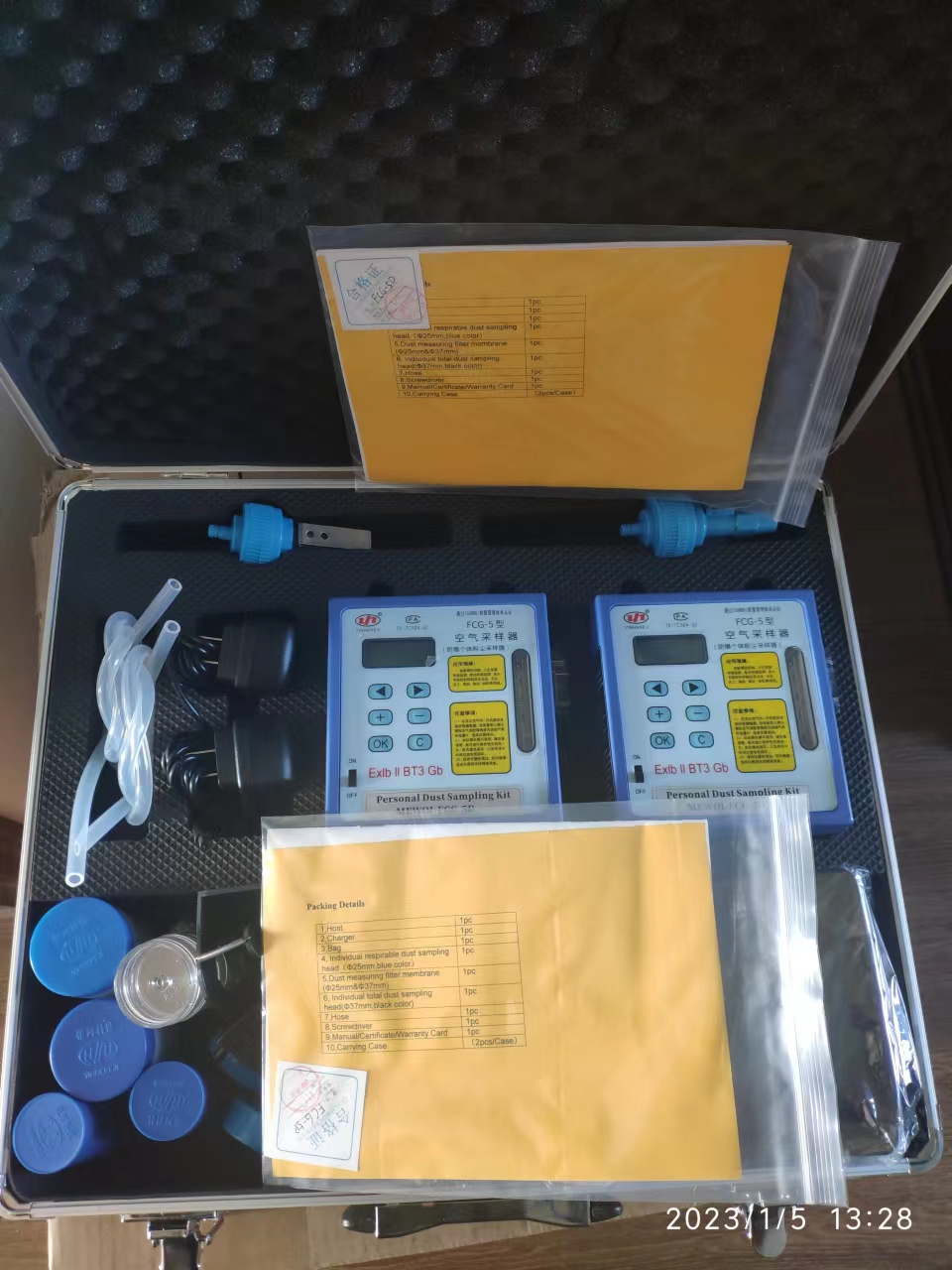

TesterMeter-FCG-5D Personal Dust Sampling Kit ,personal pump
Overview
TesterMeter-FCG-5D explosion-proof individual dust sampler is specially developed for GBZ / T 192 determination of dust in the air of workplace. It is used for long-time or individual sampling, and for sampling total dust, respirable dust and metal dust with (1-5) l / min flow filter membrane sampling clip. The instrument has built-in mine lithium-ion rechargeable battery, which can work continuously for more than 8 hours. It uses high-performance air pump, and has the characteristics of strong load capacity, large flow, accurate, ultra long working time, small volume, light weight and so on. It is an ideal sampler among the similar instruments in China. The case of the instrument is made of high strength as and ABS colored engineering plastics, and is specially treated with moisture-proof, dust-proof and anti-static measures |
TECHNICAL SPECIFICATION
Flow Range Optional | Option 1:(1.0-5.0) l / min, Option 2: (0.1-3.0) l / min |
Load capacity: | ≥ 5.0l/min (1000Pa negative pressure) |
Flow error: | ≤ ± 5% |
Flow stability: | ≤ 5% |
Timing range: | 1min ~ 99h59min |
Timing accuracy: | ≤ ± 0.1％ |
Working temperature: | - 10 ℃～ 40 ℃ |
Ambient temperature: | - 25 ～ 45 ℃ |
Noise | ≤ 50dB |
Continuous working time: | ≥ 8 hours |
Control buttons | allow sampling to be suspended during breaks, meals, or other situations |
Anti suction system: | it can prevent liquid and particulate matter from being sucked into the instrument, so as to prolong the service life of the instrument |
Explosion proof type: | intrinsically safe ex IB Ⅱ B T3 GB |
Power supply: | built in mine lithium ion rechargeable battery, with lithium battery charger |
Overall dimension of main engine: | 100mm × 110mm × 50mm |
Weight: | About 0.5KG |
